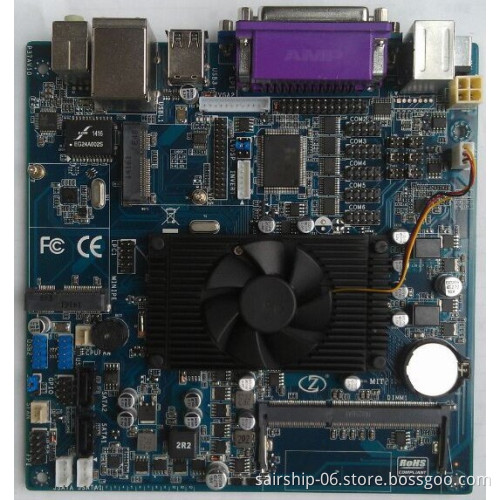

motherboard with 1037U CPU and SIM card slot supprt wifi

YH-1037H6 Motherboard Specification

Model

Zl-P1037C6

Graphic card

• Intel HD Graphics

CPU

• Intel 1037u dual-core 1.8GHz

Expansion slot

No

Onboard MINI_PCIE

• 1*MINI-PCIE(support MSAT)

• 1*MINI-PCIE(support wifi)

Chipset

• Intel 1037u+NM70

Onboard seria ATA

• 2* SATA slot

ROM

• 1* DDR3 1333/1600MHZ 204PIN SODIMM slot

Onboard LAN

•1*Realtek 8105EL,10/100M network card

(1000M network card available)

• support 32GB Max

Built in sound card

• ALC662   2/4/5.1 channel out

Front I/O interface

• 2 USB connector pin,support 4*USB2.0port
• 3 FAN connector connect  CPU and system fan
•1*serial pin(can choose five group)

•1*LVDS pin(support 2ch, 8-bit)
•1*2X2PIN power socket.

•1 * LCD Inverter power choose skip pin

•1 * LCD backlight controller connecter.

•1*1*12 VGA interface pin..

•2*SATA interface

• 1*LPT interface pin

• 1*GPIO interface

• 1*Front panel pin

Back I/O port

• 1*DCpower in port (12V)

• 1*PS/2 port
• 1*COM in port
• 1*LPT port

• 4*USB2.0 port
• 1*VGA port

•1*LAN port

•1 audio out port

•1 audio in port

System control and monitoring

• network awake
• system power control
• temperature control, Voltage management

BIOS

• AMIBIOS
• 32Mbit  flash disk

Operating humidity

0% ~ 95% (Relative humidity,no condensation)

Structure

• MINI-ITX (4 layer PCB)
• 170mm x 170mm

System

Support Windows XP, Windows 2000,Linux, Win CE,

Operation temprature

-10°C ~ 50°C

Special function

Support  two panel
