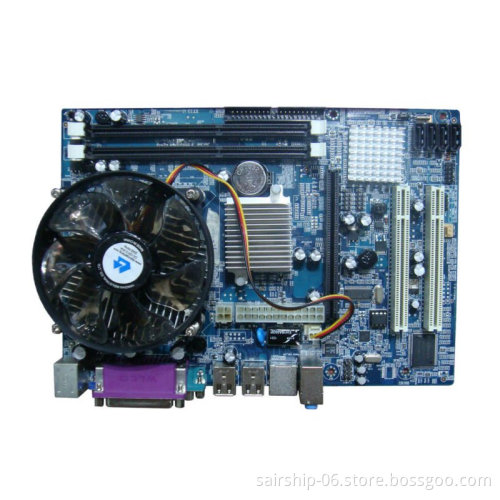

Intel G41 motherboard with LGA771 XEON 5148 CPU on board
- Delivery Time:
- 7 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guizhou, China (Mainland) |
|---|
2 Intel XEON 5148 CPU 2.33GHz on board
3 DDR3
4 4 SATA + 1 IDE
Intel G41 motherboard with XEON CPU on board DDR3 2.33 GHz G41 Motherboard with XEON CPU Specification:
Model | G41 with CPU on board |
CPU | Intel® XEON 5148 Processors 2.33GHz |
Chipset | Intel® G41+ICH7 |
Memory | 2 x DIMM, DDR3 1066/1333 MHz |
Dual Channel Memory Architecture | |
Graphic | Integrated Graphics Processor |
Expansion Slots | 1 x PCIe 2.0 x16 |
2 x PCI | |
Storage | 4 x SATA 3Gb/s port(s) |
1 x IDE | |
LAN | Realtek® 8103EL 100/10Mbps LAN |
Audio | Realtek® ALC662 6-Channel High Definition Audio |
USB Ports | 8 x USB 2.0 port(s) (4 at back panel, 4 at mid-board) |
Back I/O Ports | 1 x PS/2 keyboard (purple) |
1 x PS/2 mouse (green) | |
1 x LAN (RJ45) port(s) | |
4 x USB 2.0 | |
1 x VGA | |
3 x Audio jack(s) | |
Internal I/O Ports | 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) |
2 x COM connector(s) | |
4 x SATA 3Gb/s connector(s) | |
Accessories | User's manual |
I/O Shield | |
SATA 3Gb/s cable(s) | |
Form Factor | ATX Form Factor |
9.4 inch x 6.7 inch (24 cm x 17 cm) |
G41 Motherboard with XEON CPU: G41 Motherboard with XEON CPU Company Profile:
