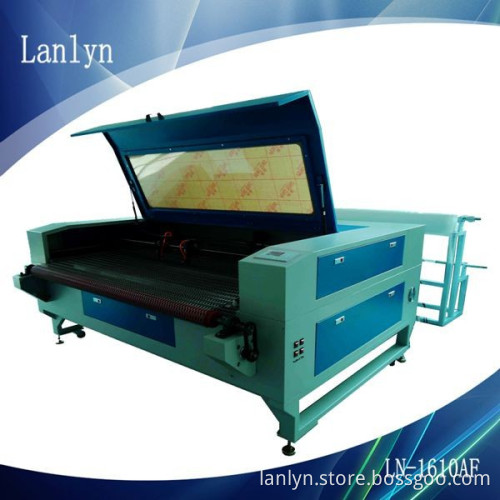

Cheap Fast Auto Feeding T-shirt Laser Cutting Machine

Specifications t-shirt laser cutting machine

.High-precision cutting head

.Roller system

.Man-machine interface operating system

.Auto feed

Cheap Fast Auto Feeding T-shirt Laser Cutting Machine t-shirt laser cutting machine FAQ How to buy from us??? 1. Please tell me your detailed requirements in the inquiry for the machine, such as:      What's the materials you are going to cut or engrave?      What's the maximum size for the materials? Includes the thickness.      Do you have some special requirement? 2. After we know your exact needs, we will recommend you with the most suitable machine and competitive price. 3. After you confirm the specification of the machine and the price, the Proforma invoice will be sent to you. 4. We will produce the machine after deposit is wired. 5. The machine will be finished between 10-15 working days. 6. The machine will be delivered after the balance is paid.  Product Description Brief introduction: LN laser, adopting DSP control system, with integrated frame-structure ensure the working stability and reliability. The software can support AUTOCAD,CORELDRAW and other graphical software and it can directly output pictures. Engraving or cutting order can be fixed by the color order. You can output all of the files or some files at a time with this function. It also support USB, which will increase productivity. Technical Parameters:

Model	LG160100
Work area (mm)	1600*1000
Dimension:	2200*1650*1100
Laser tube power	60/80/100W
Engraving speed	<500mm/s
Cutting speed	<400mm/s
Communication interface	USB
Work table	Strip panel/Honey comb board
Location  precision	<0.01mm
Power supply	AC220V  +/-10% 50Hz
Drive mode	Stepper motor
Total power	<1250W
Design software	Coreldraw, Autocad
Picture format supported	PLT, DXF, BMP,JPEG, CDR,DWG
Color separation	reaches 256 colors to cut
Cooling system	Industrial chiller
Working temperature	0 -45°C
Working humidity	5-95%  free of condensate water
Net weight	340KG

  Features of Auto Feeding laser cutter 1. The feature of cuttinh is smooth,fine;with tighten working range without much material waste which can save cost. 2. Reasonable design of laser line,the laser transmitting on large scale with the feature of simple and no waste,keep the same power-force on each working spot,ensure the quality of cutting,and can do engraving simple process. 3. High eficiency,high qulity. 4. This machine is specialized in clothes,leather ect industry.This series of machine is suitable to advertisement decoration,art gift,cutting of template,toy and other industries.   Cutting Samples:    Main parts: Accessories:  *1x laser tube  *1x honey comb working table or knife steel worktable  *1x transmission belt  *1x Taiwan Hi-Win linear guide rail   *1x water chiller  *1x exhausted fans  *1x air pump  *1x focusing lens   *3x reflecting mirrors  *1x software with English version  *1x tool box   Applicable materials Materials can be engraved:
acrylic, wood, cloth, leather, MDF, bamboo, rubber, glass, crystal, granite, marble, tile, ceramic, paper, magic bean, painted metal, etc.   Materials can be cut:
acrylic, wood, cloth, leather, MDF, plywood, bamboo, rubber, asbestos rubber, paper, PVC, foam, EVA, plastic, etc.

	Engrave	Cut
Wood	√	√
Acrylic	√	√
Delrin	√	√
Cloth	√	√
Leather	√	√
Mat Board	√	√
Melamine	√	√
Paper	√	√
Mylar	√	√
Pressboard	√	√
Rubber	√	√
Wood Veneer	√	√
Fiberglass	√	√
Plastic	√	√
Cork	√	√
Corian	√	√
Twill	√	√
Anodized Aluminum	√
Painted Metal	√
Tile	√
Glass	√
Coated Metal	√
Ceramics	√
Marble	√
Stainless Steel	√
Brass	√
Titanium	√
Bare Metal	√

  Applicable industries:  Garment,leather,cloth toy,computer embroidery and clipping,electronics,handicraft,advertisement, decoration, building upholster,printing and packing,paper products and other industries.   Packaging & Shipping  Packing detail: Company Information Factory Shows: Lanlyn company located in beautiful HuaFa Industrial Park, FuYong Street, Bao'an District, Shenzhen. It is very close ( around 15 minutes) to Shenzhen Airport and metro station. All customers very convenient to visit our factory.   The series of  products mainly include laser cutting Machines,laser engraving machines,laser marking machines,CNC router machine, CNC drilling machine and so on, OEM is our mainly service, we can provide as your demands.      Our Services  Warranty: 1. One year warranty for this CO2 laser cutting machine, except the easy-damaged laser lens, 3 months for the glass laser tube.  2. Our customer will be fully trained for the operation and maintaining technology after the order confirmed.  3. all off your inquiries or questions will be answered within 24 hours, please feel free to call us if you have any question.   4. Skilled engineer will help customer to solve the problem by MSN, SKYPE,QQ etc in time when problem happened.   Remarks:  1 .Payment way: T/T 2 .50% deposit for order and balance before delivery.   Click here to send a inquiry. If you need co2 laser cutting machine.  More information, please contact Cassie freely. +86 183 12501540   Skype:kang.raomei
