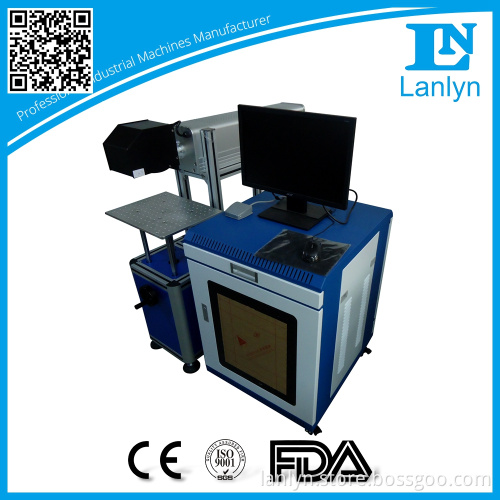

Fast speed co2 RF metal tube laser marking machine for tire

Fast speed co2 RF metal tube laser marking machine for tire       Product Description: RF  CO2 laser marking machine,used the American RF laser device with high power and frequency, long useful life,high marking speed,powerful and flexible laser scanner. The strong anti-interference ensure the system stability in the long-term working station.   Features:   Laser:adopted the American laser device,stable output beam,less fault,the lifespan to 25000 hours,low maintenance cost.Reasonable overall design with the world advanced design,control system,galvanometer combine each other perfectly,increasing the component lifespan. Cooling system:Used optimized air cooling or water cooling system to enhance laser tube useful life,operate easily and conveniently.   Technical Parameters:

Model	LN-RF100
Laser Power	100w
Laser Source	Rofin co2 laser
Laser Wavelength	1064nm
Repetition Rate	20-100KHz
Marking Range	600*600mm-800*800mm
Beam Size	0.1mm
Beam Divergence	<5
Marking Depth	0~0.6mm
Focus Facula Diameter	20μm
Laser Accurancy	±0.0025mm
Wavelength of Indication Beam	635nm
Laser Head	Gavo Scanner
Maximum Speed	≤315 in./s(8000mm/s)
Marking Varieties	Words, Pictures, Bar-codes, Logos, Serial Numbers etc.
Graphic Format Support	PLT, PCX, DXP, BMP, JPG etc
Output Compatibility	AutoCAD, CorelDRAW, Photoshop etc
Working Voltage	220V/50Hz
Cooling System	water cooling


  Applications:    Widely usded in electronic part and component, electrical engineering, electrical appliance, telecommunication product, car and motorcar spare part, instrument and meters, plastic casing, aviation and aerospace, military product, hardware fitting and accessory, facility, measuring implement, cutting tool, sanitary appliance, stationery,medicament, food and beverage, make-up, medicine packaging, medical instrument, clock and jewelry, light-through key board, glasses, solar PV, craft and etc.area.
