LN-RF30 high quality co2 laser marking machine price, co2 laser marking machine for leather

  LN-RF30 high quality co2 laser marking machine price, co2 laser marking machine for leather

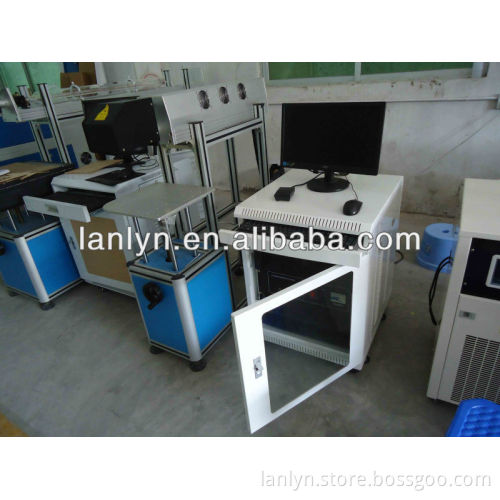

Product Description RF  CO2 laser marking machine,used the American RF laser device with high power and frequency,long useful life,high marking speed,powerful and flexible laser scanner.The strong anti-interference ensure the system stability in the long-term working station.   Features: Laser:adopted the American laser device,stable output beam,less fault,the lifespan to 25000 hours,low maintenance cost.Reasonable overall design with the world advanced design,control system,galvanometer combine each other perfectly,increasing the component lifespan. Cooling system:Used optimized air cooling or water cooling system to enhance laser tube useful life,operate easily and conveniently.   Technical Parameters:

Model	LN-RF30-100W
Laser Power	30-100w
Laser Wavelength	10.64μm
Repetition Rate	≤100KHz
Marking Range	300*300mm-600*600mm
Min.Line Width	0.1mm
Min.Character	1.0mm
Marking Depth	0~0.6mm
Marking Line Speed	≤7000mm/s
Repeatability Accurancy	±0.02mm
Response Time	0.5ms
Marking Format	Rubber,wood,bamboo products,organic glass,tile,plastic, marble,jade,crystal,other non-metal hard materials
Graphic Format Support	BMP , JPG, GIF, TGA, PNG, TIF, AI, DXF, DST,PLT, etc.
Working Voltage	220V/Single/50Hz/15A
Unit Power	<1.5kw
Cooling System	Water cooling
Net Weight	215KG
Working humidity	2050*1050*1520mm
Customized	online fly marking, 3D dynamic marking, Rotary marking, according to customer request,

    Applications:  Widely usded in electronic part and component, electrical engineering, electrical appliance, telecommunication product, car and motorcar spare part, instrument and meters, plastic casing, aviation and aerospace, military product, hardware fitting and accessory, facility, measuring implement, cutting tool, sanitary appliance, stationery,medicament, food and beverage, make-up, medicine packaging, medical instrument, clock and jewelry, light-through key board, glasses, solar PV, craft and etc.area. Widely suitable for various metals, alloy, metallic oxide materials and some non-metallic materials(silicon wafer, ceramics, plastic, rubber, epoxy resin, ABS, printing ink, plating, spraying, coating film and etc.external materials).   Samples:       Packaging & Shipping

  Company Information   FAQ  Please advise us the following information, so that we can recommend you the most suitable machine, right now, feel free to contact us: 1. what kind of machine do you need? laser cutting,laser welding or laser marking machine?
2. What materials do you need to process? The size and thickness? The efficiency requirment?
