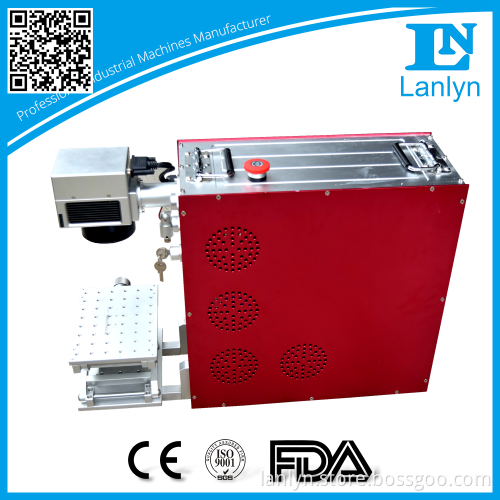

Metals/Plastic/ABS/PVC/PES/Steel/Titanium/Copper Portable Handheld Fiber Marking Laser

Metals/Plastic/ABS/PVC/PES/Steel/Titanium/Copper Portable Handheld Fiber Marking Laser handheld fiber marking laser     Features : 1. With a wide range of application,this is high tech, it can marking both on metal and non-metal. 2. 500w low power consumption, Just 1/10 lamp-pumped laser device 3. Imported high speed galvanometer scanning system. Good beam quality.Fiber laser generator long working life (100,000 hours). 4. Very stable performance and maintenance free in lifetime. And the operations is very easy, open the machine, then can use,even though the freshman can use it smoothly. 5. With the features of High speed, high precision and high efficiency,marking art piece will be much exquisite.   Technical Parameters:

Model	LN-FLM10/20P
Laser type	Ytterbium-doped fiber
Laser  power	10/20W
Laser wavelength	1064nm
Repetition rate	20-200KHZ
Marking area	50*50/70*70/110*110mm
Marking depth	<0.5mm
Marking line-speed	<1200mm/s
Min. line width	0.012mm
Min. character size	0.15mm
Repeat accuracy	+/-0.003mm
Total power	0.5/0.6KW
Power supply	AC220V±10% ,50Hz
Cooling system	air cooling/water cooling
Working temperature	0 -45°C
Working humidity	5-95%  free of condensate water
Dimension	750*350*580mm
Net weight	46.5KG

    Applicable Materials: All kinds of metals (includes precious metal), Engineering plastic, Coating film, Painting materials, Epoxy resin etc.     Applicable Industry: Jewelry, Keyboards of cell phone, Auto parts, Electronic components, Electronic appliance, Communication apparatus, Sanitary equipments, Hardware tools, Knife,Glasses, Clock, Cooker, Stainless steel products etc.     Engraving Samples:
