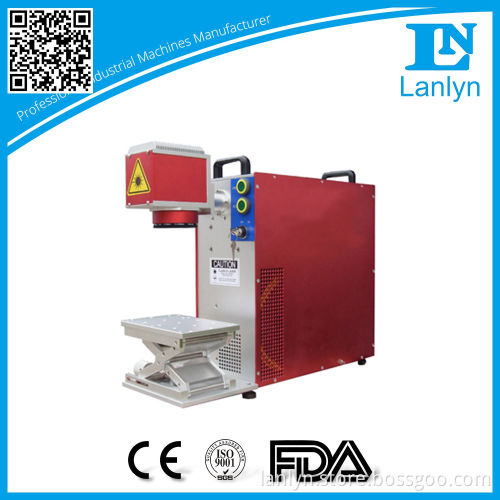

metal and non-metal fiber laser marker, metal key laser engraving machine

  metal and non-metal fiber laser marker, metal key laser engraving machine       NOW,DISTRIBUTORS AND AGENTS WANTED AROUND THE WORLD!     Product Description Technical Parameters:

Model	LN-FLM10/20P
Laser power	10W/20W
Laser Wavelength	1065±10nm
Q-frequency	20KHz~100KHz
Divergence	0.3mard
Marking range	70*70mm-150*
Min. Line width	0.01mm
Min. character	0.1mm
Marking depth	0~1mm
Engraving line speed	≤12000mm/s
Repeatability accuracy	±0.003mm
Beam quality	M2:1.2~1.8
Marking Format	Graphics,text,bar codes,two-dimensional code, automatically marking the date,batch number, serial number,frequency etc.
Graphic format supported	Bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.
Working voltage	220V/Single/50Hz/4A
Unit power	<0.5KW
Working environment	Clean and dust free or dust less
Working condition:Humidity	5%~75%,free of condensed water
Laser module life	>100000 hours
Net weight	25Kg
Packing size	0.77*0.25*0.6m
Customize	On-line fly marking, 3D dynamic marking Rotary marking, According to customer request
Rotation axis

    Features: Good quality of output beam (near to the limit of diffraction,eporting TEM00 fundamental transverse mode,M2 near to 1,expanding of laser beam is only 1/4 of the diode laser marker),suitable for high precision mark. With high repeat of the pulse,power output steadily,energy surge of single pulse is lower than 1%,can achieve high speed marking,and control the depth and shape of the facula. The processing speed is 2-3 times than the traditional marking machine. Long useful life to 100 thousands hours,ultra-low power consumption,the conversion efficiency is more than 30%,the unit power of the machine is no more than 0.5kw. Compact body to suitable hard environment. Be able to mark on all the metal materials and some of nonmetal materials. Maintenance-free.   Applicable Industries:

Mobile phone keypad	Plastic translucent keys	Electronic components
Integrated circuits(IC)	Electrical appliances	Communication products
Sanitary ware	tools	accessories
knives	Eyeglasses and clocks	jewelry
Auto parts	Luggage buckle	Cooking utensils
Stainless steel products	....and other industries

  Applicable Materials:   Metals (including rare metals),engineering plastics,electroplating materials,  coating materials,coating materials,Plastics,Rubber,epoxy resin, Ceramic,ABS, PVC, PES,Steel,Titanium,copper and other materials.   Samples:   Factory:     We also provide other machines: Packaging & Shipping     How to contact us
