High quality cnc type3 software multipurpose woodworking machine, router machine for wood

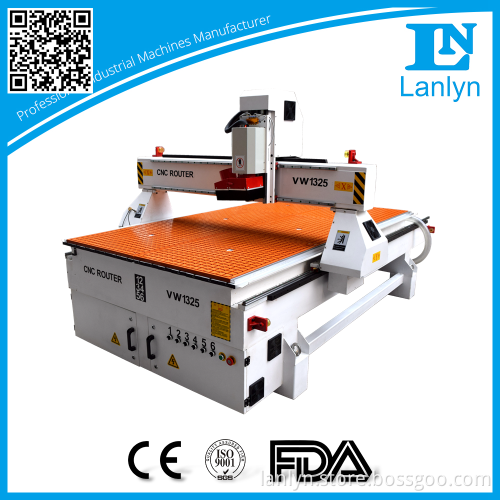

High quality cnc type3 software multipurpose woodworking machine, router machine for wood       Product Description   Model Pic:     Technical Parameters:

Model		LN-1325
Working Area	XYZ axis	1300*2500*200mm
Height	Z axis	200mm
Move System	XYZ axis	XY:rack Z: ball screw
		TAIWAN HIWIN linear guide rail
		Step motor
Control System	CNC system	DSP
	Interface	USB
Accuracy	Moving	±0.1mm
	Repeat	±0.1mm
	DPI	0.002mm
Speed	Max.Moving Speed	30000mm/min
	Max.Engraving Speed	20000mm/min
Software	Computer OS	Window98/2000/XP
	Command	G-Code/HPGL-3D
Spindle	Power	2.2kw ( air cooling )
	Rotary speed	0-24000rpm
	Collet	ER25-Φ3.175-Φ16
Power Supply	AV	220V/50HZ
Lubrication System	Thin oil lubrication	Hand/auto
Package	Weight	1200-1500kg
	Dimension	2100*3500*1700mm


   Features:  1. Heavy Body: heavy integral welding structure, 8MM steel tube welded. Hard to be distortion after high temperature      heat treatment. More solid and reliable,stability with higher precision after cnc lathe Grinding processing. 2. High performance stepper motor with TAIWAN ball screw and square rail, ensure higher stability. 3. According to industry standard, synchronized X.Y.Z motor, ensure precision and high ratio. 4. With the help of Marble platform,collimator, repeator and some other auxiliary tool for testing stable assembly,      surface of guide rail, improved the working accuracy. 5. 3D smart CNC controller system, providing fast, smooth, 3 axis 3d engraving. 6. High quality aluminium alloy T slot table. 7. Support CAD/CAM software: Artcam, Wentai, Mastercam, Type3,UG, Caxa. JD Paint, proe /UG and etc. 8. 3.5kw DC brushless spindle converter providing strong power for cutting and engraving. 9. Built-in large capacity storage, support the fuction of power off and restarting. 10.Best suitable for acrylic, wood engraving and cutting.     Options: 1.vacuum pump, 2.rotating axis, 3.dust collector, 4.spindle collets, 5.vacuum holddown table, 6.automatic tool changer.   Samples:   Detailed Images   Packaging & Shipping     How to contact us
