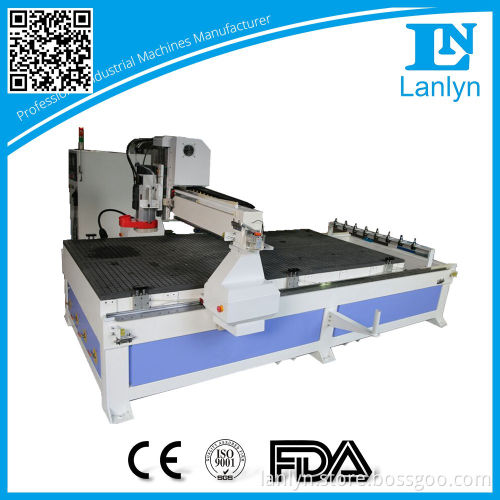

ATC spindle system 1325 cheap CNC router wood germany

ATC spindle system 1325 cheap CNC router wood germany Product Description Main Features: 1. Heavy Body: heavy integral welding structure, 8MM steel tube welded. Hard to be distortion after high temperature     heat treatment. More solid and reliable,stability with higher precision after cnc lathe Grinding processing. 2. High performance stepper motor with TAIWAN ball screw and square rail, ensure higher stability. 3. According to industry standard, synchronized X.Y.Z motor, ensure precision and high ratio.   4. With the help of Marble platform,collimator, repeator and some other auxiliary tool for testing stable assembly,     surface of guide rail, improved the working accuracy.   5. 3D smart CNC controller system, providing fast, smooth, 3 axis 3d engraving.   6. High quality aluminium alloy T slot table.   7. Support CAD/CAM software: Artcam, Wentai, Mastercam, Type3,UG, Caxa. JD Paint, proe /UG and etc.   8. 5.5kw DC brushless spindle converter providing strong power for cutting and engraving. 9. Built-in large capacity storage, support the fuction of power off and restarting.   10.Best suitable for acrylic, wood engraving and cutting.           Technical Parameters:

Model		1325
Working Area	XYZ axis	1300*2500*200mm
Height	Z axis	200mm
Working Table		Vacuum (6 section) with T slot aluminum alloy platform
Move System	XYZ axis	XY:rack Z: ball screw
		TAIWAN PMI/HIWIN guide
		Panosonic / Yaskawa serve system 750w
Control System	CNC system	WEIHONG NK105
	Memory	512M
	LCD Panel	3”LCD
	Interface	USB
Accuracy	Moving	±0.005/300mm
	Repeat	±0.005mm
	DPI	0.002mm
Speed	Max.Moving Speed	30000mm/min
	Max.Engraving Speed	20000mm/min
Software	Computer OS	Window98/2000/XP
	Command	G-Code/HPGL-3D
Spindle	Power	3kw air cooling
	Rotary speed	0-18000rpm
	Collet	ER25-Φ3.175-Φ16
Power supply	AV	220V/50HZ
Lubrication System	Thin oil lubrication	Auto /Hand
Package	Weight	900kg
	Dimension	2100*3500*1700mm
Working environment	Temperature	+5℃ to +35℃
	RH	30%-75%
	Air pressure	86-106Kpa

    Machine detail pictures:     Samples:  Packaging & Shipping     How to contact us     If you are not sure to buy which machine,please tell me your detailed requirement,inculding meterial type,size,thickness,and so on.Iwill give you some suggestions.Any question please feel free to contact with me. Welcome to visit our factory, we offer free training in our workshop.
