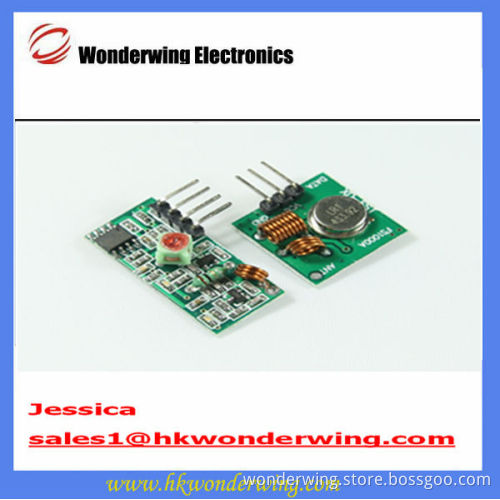

Hot sell For Arduino 433M super-regenerative receiver module Wireless transmitting module

Specifications 433M super-regenerative receiver module Wireless transmitting module

1.high quality

2.competitive price

3.fast delivery

About product  433M super-regenerative receiver module Wireless transmitting module   Receiving module technology parameters :       The product model: MX-05 V
Working voltage: DC5V
Static current: 4 MA
Receive frequency: 433.92 MHZ
Rx sensitivity:-105 DB
Size: 30 X 14 X 7mm
External Antenna: 32 CM Single Polishing, spiral around
Transmitter Module technique parameters:       The product model: MX-FS-03 V
Transmitting distance: 20-200 meters (voltage different, the different effect)? Working Voltage: 3.5-12 V
Size: 19 X 19 mm
Operating mode : AM ,transmission rate: 4 KB/S ,transmitting power: 10 mW ,
Transmitting frequency: 433 M ,External antenna: 25 cm common multicore or single core
Pin from left to right: (DATA; VCC; GND)       Application:   Remote control switch, receiving module, motorcycle, automobile Antitheft Product , homehold Antitheft Product , Electrically operated gate,, remote control LED, Remote audio, remote electrombile.......       Note:
VCC voltage_and the module voltage is consistent,_and do well Power Filter ;
Antenna? influence the module reception, It is better take1/4 wavelength antenna, generally USES 50 ohm single core wires, the length of the antenna 433 M about 17 cm; Antenna position effect receiving module too, while installation, antenna as far as possible unbend, away from the shields, high voltage,_and interference source .
Packing Including :   1x Wireless transmitter module   1x Wireless Receiver module     All
