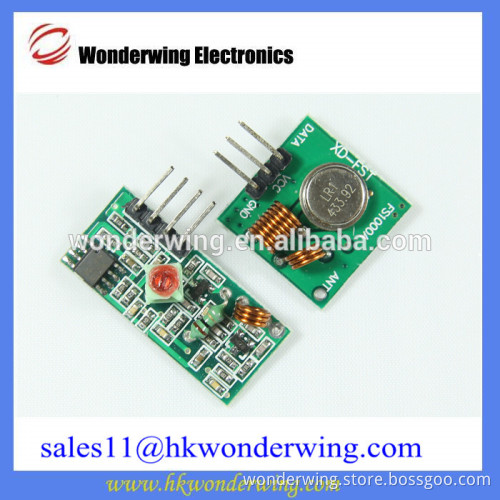

Alarm transmitter wireless transmitter module 433M super-regenerative receiver module

Specifications Alarm transmitter wireless transmitter module 433M super-regenerative receiver module

Alarm transmitter wireless transmitter module 433M super-regenerative receiver module     Product Description       Receiving module technology parameters :                                                                                                      The product model: MX-05 V
Working voltage: DC5V
Static current: 4 MA
Receive frequency: 433.92 MHZ
Rx sensitivity:-105 DB
Size: 30 X 14 X 7mm
External Antenna: 32 CM Single Polishing, spiral around
Transmitter Module technique parameters:                                                                                                  The product model: MX-FS-03 V
Transmitting distance: 20-200 meters (voltage different, the different effect)? Working Voltage: 3.5-12 V
Size: 19 X 19 mm
Operating mode : AM ,transmission rate: 4 KB/S ,transmitting power: 10 mW ,
Transmitting frequency: 433 M ,External antenna: 25 cm common multicore or single core
Pin from left to right: (DATA; VCC; GND)  Application:                                                                                                                                                         Remote control switch, receiving module, motorcycle, automobile Antitheft Product , homehold Antitheft Product , Electrically operated gate,, remote control LED, Remote audio, remote electrombile.......   Note:
VCC voltage_and the module voltage is consistent,_and do well Power Filter ;
Antenna? influence the module reception, It is better take1/4 wavelength antenna, generally USES 50 ohm single core wires, the length of the antenna 433 M about 17 cm; Antenna position effect receiving module too, while installation, antenna as far as possible unbend, away from the shields, high voltage,_and interference source .
Packing Including :                                                                                                                                              1x Wireless transmitter module   1x Wireless Receiver module   Images:                                                                                                                                                                                    Shipping Terms:   1. We will arrange shipment within 2-3 working days once get your payment. 2. We usually ship via Global express company: UPS/DHL/EMS/FEDEX. if you have better express service company , Please tell us then. We'll choose your preferred ways. 3. We are not responsible for any accidents, delays or other issues that we couldn’t control, But we will contact the shipping company which is our long term cooperation. 4. Any import duty or charges are for the buyer's responsibility.         Company Information   More information about our company:     Founded in 2006, WONDERWING (H.K) Electronics Ltd. mainly operates IC trading in the areas of Mobile Telecommunications, PDA, and Consumer Electronic products. We are developing the good co-operations with varieties of OEMs. In addition to the first-class quality products and the competitive price, we will provide the technical supports if necessary. Meanwhile, we are trying to develop the good co-operations with other brands. In order to develop our company in the electronic industry, which has been now changed rapidly, we will serve our customers in the most professional service and provide them the latest and perfect product information. Our marketing philosophy is “Satisfaction, Quality, and Guarantee". We have won a good reputation from our clients due to our great perfect post-sales service and the quality of products.      WONDERWING (HK) ELECTRONICS LTD     ADD: Room 2401-2404, REITH CENTER (Tower A, Century Holiday Plaza) No.9030 north of Shennan Rd. Nanshan, Shenzhen, China   Contact: Stephanie Liu     Tel: 0086-755-88848115 ext.805   86-13632615416   FAX: 0086-755-83741145   Website: www.hkwonderwing.com
