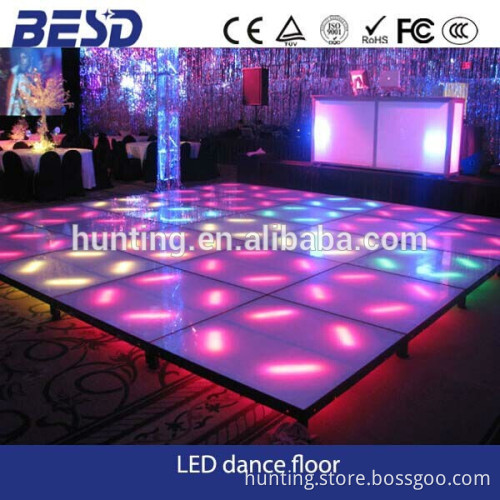

Indoor P10 full color Acrylic glass LED dance floor screen made in China/ shenzhen factory HD xxx video LED billboard

LED dance floor screen, LED stair   Parameter table

Model:BESD-IFP10
Pixel Pitch	10mm	Module size	320*160mm
Pixel configuration	1R1G1B(SMD 3 in 1 )	Module density	32*16dots
View angel	140°/140°	Pixel density	10,000 dots/aqm
LED encapsulation	SMD3528 3in1	Refresh Rate	>=800 HZ
Cabinet size	Normal 640mm x 640mm Or designed by requirements	Cabinet material	Aluminum alloy or Iron steel
Cabinet thickness	< 8cm or Designed by requirements	Cabinet weight With fast lock	< 10kg/cabinet or Designed by require
Driving Method	1/8 scan, constant current	Max power consumption	600w/sqm
Brightness	>1300nits	Type Power consumption	300W/aqm
Working voltage	AC110/220V +- 15%	Working temp	-20°C to +60°C
Best viewing distance	>6m -300m	Working humidity	35% ~ 85%
LED parameters	R: 620 – 625nm; IV:250 – 300mcd	MTBF	>5000hours
	G:520 – 523nm; IV:800 – 1000mcd	Gray Level	>8192 grade
	B:467 – 470nm; IV:200 – 230mcd	Lifespan	>100,000hours
Image processing	Video denoising, rapid motion compensation, edge sharpening, edge smoothing, color coordinate conversation&control , grey scale transformation etc
Brightness uniformity	Ratio of min pixel brightness /max pixel<0.9(When each color reaches its highest brightness)
Effective control distance	Cat-5<100M,Multi-mode fiber:<500M;Single-mode fiber<20Km
Color Temperature/contrast	Brightness and contrast of red, green and blue can be adjusted by software,100 scales are available, color temperature is adjustable
Input signal	RF,S-VIDEO,RGB,RGBTV,YUT,YC,COMPISITION
Control	Sending card+Receiving card+Hub card+DVI Card+PCTV Non-liner card+Muti-funcational card(Optional)+Video processor(Optional)+ Fiber Transmitter(Optional)

                                                                                                                                        Moule   Function With te Completely waterproof, can be used for both indoor and outdoor; mpered glass as the cover, strong enough, can dance on it and lay car on it; Special Module design, no cabinet, can be assembled to any size you want. Much easy for assembling; With vivid display effect; Super thin module design; Rental use and fix installation are both available.  Application Exhibition such as Moto, car; Fashion Show; Outside and inside stage; Event for election etc; Concert.   Company profile     BESDLED has 14 years experience of LED lamps encapsulation,
7 years of LED display screen, with complete special LED test lab, LED display R&D system, production system, QA, QC system.
BESDLED passed ISO9001:2000 in 2004, our products also passed CE, ROHS approval.
Our products have already exported to Europe, Asia, Africa and America and etc.   Our company SHENZHEN BESD CO.,LTD is a professional LED display screen manufacturer. We have specialized in this field for many years. We have a lot of advantages: 1. 17 years history, rich experience in quality control.
2. 13000sqm with 250 employees, big factory with reliable after-sales service.
3. LED encapsulation factory, control the quality of every single LED.
4. Automatic producing line for module, guarantee the delivery time.
5. Experienced technician for debugging and testing. 6. 2 years warranty with 0.6% free spare parts. 7. Provide technical support and training. 8. Long term cooperation and sharing.           Warmly welcome to visit our company!
