Pixel 10mm LED Dance Floor for Entertainment Usage

Specifications LED Dance Floor

1.18 years in led industry

2.Damp proof

3.Strong Constrution

4.CE,RoHS,UL certificate

Pixel 10mm LED Dance Floor for Entertainment Usage Product Description 1. Parameter Table of LED Dance Floor

Pixel 10mm led module
Module	P10
Pixel Pitch	10mm
LED Configuration	1R1G1B
LED standard	SMD3528
LED Density	10,000dots/Square meter
Red LED	620-630nm; 750-900mcd
Green LED	525-530nm;1900-2100mcd
Blue LED	465-470nm;350-450mcd
Luminance	≥900CD/Square meter
Optimal Viewing Distance	10m-100m
Horizontal View Angle	≥140 Angle
Vertical View Angle	≥140 Angle
Display Colors	1024*1024*1024=1073741824Kinds
LED Stents	Silver Plating
Cabinet	Punch mould with thick cold-rolled sheet of 1.5mm
Driving Mode	1/4 Scanning
RTI of modules	Silica gel, heat resisting and fireproof
Contrast	6000:01:00
Storage Humidity	-40~+85°C
Working Humidity	-20-+60°C
Relative Humidity	10%-90%RH
AC Working Voltage	110 / 220V±10%
Average Power Consumption	300W/Square Meter
Max Power Consumption	600W/Square Meter
Refresh Rate	≥800Hz
Frame Frequency	≥60Hz
Malfunction Dot Rate	1/10000;2-3/10000 after one year
Brightness Adjustment	Adjustable brightness software according to the environment
Average Trouble Free Time	≥10000 hours
Life Span	≥100,000 hours
Flatness	Space between each pixel pitch=0.5mm; space between modules<1mm
Uniformity	Brightness of module is uniformity and strong
Blind Spot Rate	<0.0001
Electric Protection	Protect from over current, short circuit,open circuit and overvoltage
External Protection	Waterproof, dustproof, anti snow,anti flaming,moist proof and antiseptic.
Remarks	Color rate of the LED brightness is seriously  required in order to reach the best white balance of color matching.

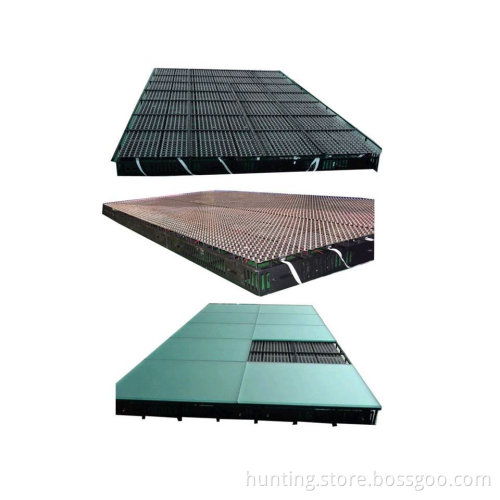

  2. LED Dance Floor Cabinet Photo              3. Feature 1. Light weight of cabinet 14.7kgs 2. Suitable for rental, fixed installation 3. Widly use for stage, rental, night bar, fashion bar etc 4. Compatible for text file, word fie, pictures (BMP/JPG/GIF/PCX...), Anitation (MPG /MPEG/MPV/MPA/AVI/VCD/SWF/RM/RA/RMJ/ASF...), Video (MPG /MPEG/MPV/MPA/AVI/VCD/SWF/RM/RA/RMJ/ASF...)   4. Project Pictures         Packaging & Shipping Polywood box or air freight case to make sure that the goods are protected well.

Delivery time

1.Delivery time: Accomplish manufacturing within 2~3 weeks after receiving the deposit.

2.Before delivery, we will test the display, and keep it light up for 72 hours, and check all the parts of the display to confirm it is Ok for delivery.

    Our Services

Warranty

1.We guarantee all our display, modules, spare parts (Epistar and Silan Chip) for TWO years.

2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.

3.After warranty , we also can offer you the parts for replacement at our bottom price.

4.After sales, if you have any problem about our product, you can inform us by Email, we will reply you at once when we get it and offer you a good solution to solve the problem.

5.We also could solve problems for you until it recovers well by remote control!

     After-Service    Principles: Response in time, solve problem ASAP and ensure the use.   Period: During warranty period, free of all maintenance charges;   After Warranty, only charge the material cost.   All the life time, Technology support is free.   Payment Terms      1>. Payment term: T/T 40% deposit after order confirmed, the balance after goods ready before shipping.    2>. Lead time: normally in 15~20 days after deposit received.    3>. Sample policy: Samples are always availble for each model.        Samples can be ready in 3~7 days once payment is received.    4>. Shipping port: Shenzhen, China.    5>. Discounts: We offer discount for big quantity.      Company Information Certificate Many Certification approved to clear up the trade barriers.CE, FCC, UL, RoHS, CCC, ISO9001: 2000 etc are obtained.   About us: Shenzhen Besdled Co., Ltd       Our company BesdLED has 18 years experience of LED lamps encapsulation,
11 years of LED display screen, with complete special LED test lab, LED display R&D system, production system, QA, QC system.
BesdLED passed ISO9001:2000 in 2004, our products also passed CE, RoHS approval.
Our products have already exported to Europe, Asia, Africa and America and etc. At BESDLED, we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive, cutting-edge product offering.   Our exhibition Intergrated Systems Europe: Amsterdam, Netherlands Electronical devices exhibition:  Brazil     FAQ   1>. What's your Package?       Air freight case or cartoon box 2>. What's your delivery seaport?       Usually Shenzhen 3>. What's your payment term?       T/T 40% as per deposit and T/T 60% before shipping 4>. What's your lead time?       Normally 15-20 days after deposit received. 5>. What's the warranty of your LED display?     The full color LED display have at least 2 year warranty. 6>. How to place an order?        Please send us your purchase order by email or call.         Or you can ask us to send you a Proforma Invoice for your order. 7>. Can you arrange the transportation for us?       Yes. We've got the strategic shipping partner and can arrange sea, air and courier transportation     for you with the most competitive price.     We always stand behind our products and beside our customers!  If you are interested in our products, please click "contact supplier" or send email to me. We are ready to listen to you and at your service for 24hr all round the clock.    We are Shenzhen BESDLED Co., Ltd Brilliant show!
