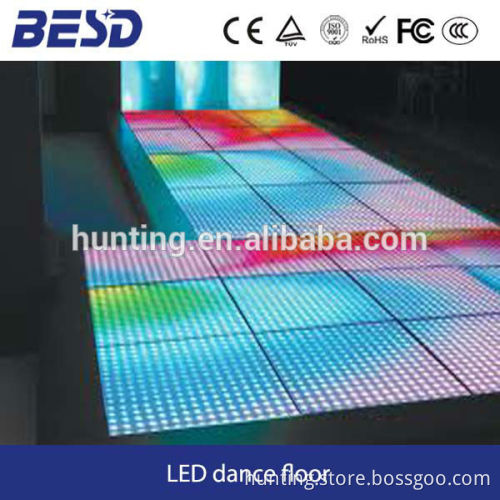

full color P10 indoor led Dance floor for show/party/concert

Product Description  P16 parameter

Model:BESD-OFP16
Pixel pitch	16 mm	Module size	256 x 128mm  ,320×320mm
Pixel configuration	2R1G1B ,1R1G1B	Module density	16x8dots,20×20dots
View angle	120°/90°	Pixel density	3,906dots/sqm
LED encapsulation	DIP 546 ,DIP346	Refresh Rate	≥3000Hz
Driving Method	static,constant current	Max power consumption	1000w/sqm
Brightness	>7000nit	Average Power consumption	350 w/sqm
Cabinet size	Normal 640 x 640mm or	Cabinet material	Aluminum alloy or
	Designed by requirements		Iron, Steel
Cabinet thickness	< 8cm or	Cabinet weight	< 10kg/cabinet or
	Designed by requirements		Designed by require
Working voltage	AC110 / 220V	Working temp	-20℃to +60℃
Best viewing distance	>14m	Working humidity	10%~90%
LED parameters	R:625nm±5.0nm	MTBF	>5,000hours
	IV:400- 500mcd
	G:525 nm±2.5nm;	Gray Level	RGB/8192/14bit
	IV:1800 - 2200mcd
	B:470nm±2.5nm;	Lifespan	>100,000hours
	IV:350 - 450mcd
Image processing	Video denoising, rapid motion compensation, edge sharpening, edge smoothing,
	color coordinate conversation & control , grey scale transformation etc
Brightness uniformity	Ratio of min pixel brightness /max pixel<0.9(When each color reaches its highest brightness)
Effective control distance	Cat-5<100M,Multi-mode fiber:<500M;Single-mode fiber<20Km
Color Temperature/contrast	Brightness and contrast of red, green and blue can be adjusted by software,
	100 scales are available, color temperature is adjustable
Input signal	RF,S-VIDEO,RGB,RGBTV,YUT,YC,COMPISITION
Control system	Sending card+Receiving card+Hub card+DVI Card+PCTV Non-liner card+Muti-funcational card(Optional)+Video processor(Optional)+ Fiber Transmitter(Optional)

  LED MODULE PICTURES AS FOLLOWS:   Packaging & Shipping     Our Services   1. Provide professional technical schemes for you for free.
2. Lifetime to provide training,including free installation and application of related technical guidance.
3. Obtained certifications: ISO9001:2008,CE,FCC,CCC,UL,RoHs,SGS (Special requirements for the certificate we provide to apply for assistance).
4. Software upgrade for free.
5. 2 years warranty,lifetime maintenance.   Company Information
