Easy install double sides outdoor RGB HD Pixel 10 mm video function led display led cabinet

Specifications Pixel 10 mm video function led display led cabinet

1. CE,FCC,CCC,RoHs

2. Waterproof

3. High resolution

4. Warranty 2 years

  Easy install  double sides outdoor RGB HD Pixel 10 mm video function led display led cabinet       1. Product Description of  outdoor RGB HD Pixel 10 mm video function led display led cabinet         Product features of  outdoor RGB HD Pixel 10 mm video function led display led cabinet   1.High brightness DIP LED are used for outdoor led display, keeps the display content visible even if facing the strong sunshine directly. 2.With Anti-UV ray mask, the color of the mask would never change even if under exposure of UV ray. 3.Weatherproof design, completely outdoor use. 4.Easy for assembling and connection with tje connector added. 5.High color uniformity and clear image can bring you a vivid audio visual effect. 6.Both front and rear access are available. 7.The LED chips that we use have the advantages of large viewing angle, low power consumption and good color uniformity. 8.Use the same level of red green and blue led chips, which makes the image display of whole led display more excellent and uniform. 9.The maintenance of pixel and single led has been realized. 10.Good quality raw material, accrate technique and careful inspection insures the high quality of led display. 11.The shape and size can be made according to your requrement.         Parameter table of   outdoor RGB HD Pixel 10 mm video function led display led cabinet

Pixel pitch	10mm	LED encapsulation	DIP 346
Pixel configuration	1R1G1B	View Angle	120°/90°
Module Resolution	16x16dots	Module size	160x160mm
	32x32dots		320x320mm
Pixeldensity	10,000dots/sqm	Brightness	>7000nit
Working Temp	-20°C~+60°C	Max power consumption	850W/sqm
Working Humidity	10%~90%	Average power consumption	300W/sqm
Working voltage	AC110/220V	Driving Method	1/4 scan,constant current
Optimum viewing distance	>8m	Refresh rates	≥1200Hz
MTBF	>10,000hours	LED parameter	R:625nm±5.0nm,IV:400-450mcd
	RGB/8192/14bit		G:525nm±2.5nm,IV:1,800-2,200mcd
	>100,000hours		B:470nm±2.5nm,IV:350-450mcd
Blind sport rate	<0.00001	Display Function	Graphic,Animation,and Video
Warranty period	2 ~5 years	Usage	fixed/rental
Signal sources input	DVI,VGA,SDI,HD-SDI,TV,HDTV,NTSC/PAL,S Video,etc
Wide Application	building,shopping mall,cinema,meeting room,train station,plaza,street etc

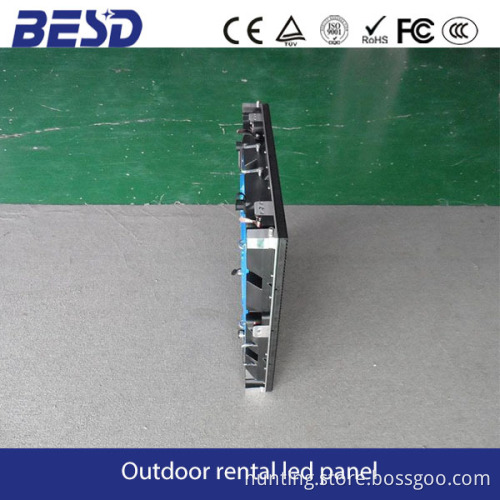

        Module pictures of   outdoor RGB HD Pixel 10 mm video function led display led cabinet          Cabinet pictures of   outdoor RGB HD Pixel 10 mm video function led display led cabinet             Display pictures of   outdoor RGB HD Pixel 10 mm video function led display led cabinet       2. Control system of  outdoor RGB HD Pixel 10 mm video function led display led cabinet   Control system Connection Diagram of  RGB HD Pixel 10 mm video function led display led cabinet   Control system: Sending card + Receiving card + Hub card + DVI Card + PCTV Non-liner card + Muti-funcational card(Optional) +Video processor(Optional) + Fiber Transmitter(Optional)   Effect control distance:  Cat-5<100M,Multi-mode fiber:<500M,Single-mode fiber<20Km       3. Installation Type of RGB HD Pixel 10 mm video function led display led cabinet     4. Packaging&Shippingn of  RGB HD Pixel 10 mm video function led display led cabinet   Plywood/Flinght case packing (2-5 Pieces per case) P10 video function led display led cabinet     5. Our Services   I. Aboves are regular, special can be specially designed. II. Free warranty for two years, each additional pay 4% a year. IIV. For life to provide free installation and application of related technical guidance. IV. Obtained certifications: ISO9001:2008,CE,FCC,CCC,UL,RoHs,SGS (Special requirements for the certificate we provide to apply for assistance). V. Accept different payment terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,cash. VI. Software upgrade for free.   6. Company Information     Founded in 1996, is one the high-tech enterprise specialized in R&D, manufacturing, marketing and service of LED products. Covering 20,000 square meters, BESD owns independent purifying workshop, R&D center, most advanced producing and inspection equipment.   Building and workshop     Cetifications     Exhibitions     7. FAQs   Q1: Do you have other indoor LED display series? A: Yes. We also provide 2.5, 3, 4, 5, 6, 7.62, 8, 10. Q2:Do you have other outdoor series? A:Yes.We provide ourdoor LED display series: 6, 8, 12, 12.5, 20, 25. Q3: I have special requiests? A: We will do our best to make the best solution for you. Q4: I want to know more? A: Contact us right now is the fastest way.
