Aluminum die casting P2.5 P3 P4 indoor led screen stage led video wall panel for concert

Aluminum die casting P2.5 P3 P4 indoor led screen stage led video wall panel for concert   Product Description

Model:BESD-IFP4
Pixel Pitch	4mm	Module size	256×128mm
Pixel configuration	1R1G1B	Module density	64×32mm
View angle	120°/120°	Pixel density	62500 dots/sqm
LED encapsulation	SMD2121	Refresh Rate	1600HZ-3000HZ
Pixel error rate	<0.00001	Certification	CE,ROHS,FCC,CCC
Cabinet size	Normal 512 mm × 512 mm Or customized design	Cabinet material	Die Casting Aluminum
Cabinet thickness	< 5cm or Designed by requirements	Cabinet weight  With fast lock	8kg/cabinet or  Designed by require
Driving Method	1/16scan	Max power  consumption	680W/sqm
Brightness	>1600nit	Type Power consumption	340W/sqm
Working voltage	AC220 /110 ± 10%, 47~63Hz	Working temp	-20°C to +60°C
Best viewing  distance	>4m	Working humidity	20% ~ 90%
Brightness level	256levels Manual / Automatic	Lifespan	>100,000hours
Image processing	Video denoising, rapid motion compensation, edge sharpening, edge smoothing,  color coordinate conversation&control , grey scale transformation etc
Brightness uniformity	Ratio of min pixel brightness /max pixel<0.9(When each color reaches its highest brightness)
Effective control distance	network cable 100m,single mode fiber cable 10KM
Color Temperature/contrast	Brightness and contrast of red, green and blue can be adjusted  by software,100 scales are available, color temperature is adjustable
Input signal	DVI,VGA,RF,SDI,S-VIDEO,RGB,RGBHV,YUV,YC&Composite
Control	Sending card+Receiving card+Hub card+DVI Card+PCTV Non-liner card+Muti-funcational card(Optional)+Video processor(Optional)+ Fiber Transmitter(Optional)

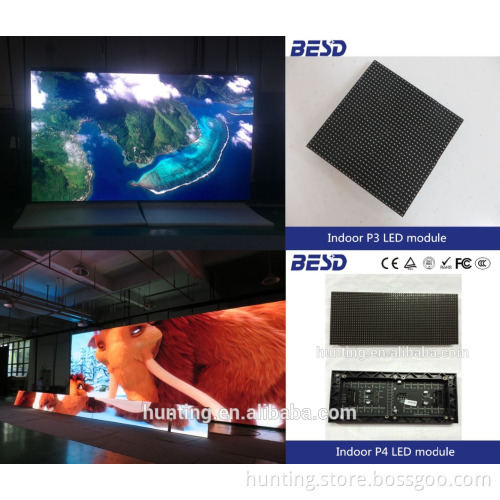

    Advantages  1. Easy to move, easy to dismantle  2. Easy to install,  easy to maintain  3. Multifunctional connecting  4. Seamless splicing  5. Light weight  6. Large Viewing angle  7. High contrast,high image quality  8. Great conformity  9. Saving time and costs   10. Wide application: Stage show, Exhibition, Concert, Event, Cerebration, Conference, Banquet, Meeting room, Hotel, Cinema, Shopping Mall, Airport, Studio, Stadium, Street etc. Products Photoes             Packaging &Shipping 1. Packing: Flight Cases
2. Lead time: 20-25 working days;
3. Guarantee: One year's guarantee, with limited free part repair or replacement.
4. After Service: Free long-distance trouble shooting via telephone, email or video chatting; On-site technical support and installation is available upon customer's request.    Flight Case:       Trade Terms 1.Payment:T/T,40% deposits  ,  balance to be paid before dleiverying
2.Shipping freight are quoted under your requests
3.Shipping port: Shenzhen, Mainland China
4.MOQ:1sqm     Main Products (1)Outdoor fix installation led screen:P6,P8,P10,P12,P14,P16,P20,P25 etc. (2)Indoor fix installation led screen:P3,P4,P5,P6,P7.62,P8,P10 etc (3)Outdoor rental led screen:P5,P6,P8,P10,P12,P14,P16,P20,P25 etc. (4)Indoor rental led screen:P2.5,P3,P4,P5,P6,P7.62,P8etc (5)Outdoor and indoor Perimeter LED Screen:P6,P7.62,P16,P20 etc (6)LED Curtain:P31.25,P37.5,P40 etc (7)LED Curve or Round,Column LED Screen: P6,P7.62,P8,P10, P12,P14,P16,P20,P25 (8)Dance floor led screen (9)Stage led screen  (10)Single color or dual color for text and graphic Exhibition Viewing 1) ISE Exhibition  2) ISE Exhibition  3) ISE Exhibition    4) Brasil show    5)ISA Fair , HongKong,Dubai, etc   FAQ 1. How can I place an order? Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype/email /phone, in case of any delays.   2. What kind of display we provide? We have indoor/outdoor/led curtain/mobile LED /rental LED display /LED stage/LED DanceFloor/Irregular LED display for you choose.   3. What about the lead time for order ? Always: 3-20 days, as your order quantity, Sometimes we have stock, can delivery within 3 days   4.How about the warranty ? We have 1-3 years warranty and lifelong maintenance   5. What is your terms of delivery? We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.   6. Is it OK to print my logo on led display product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample. Warmly welcomed to contact us and visit our factory!
