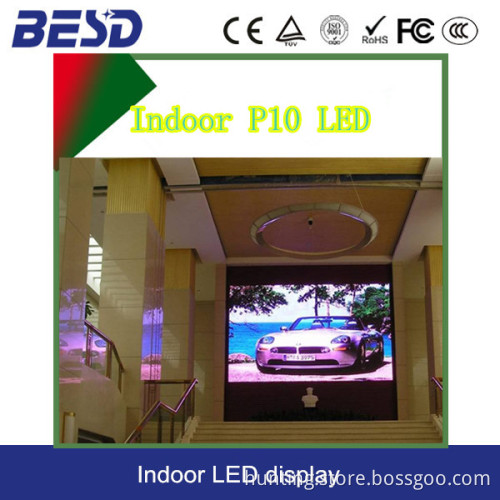

SHENZHEN BESDLED P10 indoor full color SMD3528 LED screen

Stable performance wedding stage background P10 indoor full color led screen   BESD indoor LED display screen series( P2.5, P3, P4, P5, P6, P7.62, P8, P10).   P10 led display paramater table

Model:BESD-IFP10
Pixel Pitch	10mm	Module size	320*160mm
Pixel configuration	1R1G1B(SMD 3 in 1 )	Module density	32*16dots
View angel	140°/140°	Pixel density	10,000 dots/aqm
LED encapsulation	SMD3528 3in1	Refresh Rate	>=600 HZ or >=2000 HZ
Cabinet size	Normal 640mm x 640mm Or designed by requirements	Cabinet material	Aluminum alloy or Iron steel
Cabinet thickness	< 8cm or Designed by requirements	Cabinet weight With fast lock	< 10kg/cabinet or Designed by require
Driving Method	1/8 scan, constant current	Max power consumption	600w/sqm
Brightness	>1300nits	Type Power consumption	300W/aqm
Working voltage	AC110/220V +- 15%	Working temp	-20°C to +60°C
Best viewing distance	>6m -300m	Working humidity	35% ~ 85%
LED parameters	R: 620 – 625nm; IV:250 – 300mcd	MTBF	>5000hours
	G:520 – 523nm; IV:800 – 1000mcd	Gray Level	>8192 grade
	B:467 – 470nm; IV:200 – 230mcd	Lifespan	>100,000hours
Image processing	Video denoising, rapid motion compensation, edge sharpening, edge smoothing, color coordinate conversation&control , grey scale transformation etc
Brightness uniformity	Ratio of min pixel brightness /max pixel<0.9(When each color reaches its highest brightness)
Effective control distance	Cat-5<100M,Multi-mode fiber:<500M;Single-mode fiber<20Km
Color Temperature/contrast	Brightness and contrast of red, green and blue can be adjusted by software,100 scales are available, color temperature is adjustable
Input signal	RF,S-VIDEO,RGB,RGBTV,YUT,YC,COMPISITION
Control	Sending card+Receiving card+Hub card+DVI Card+PCTV Non-liner card+Muti-funcational card(Optional)+Video processor(Optional)+ Fiber Transmitter(Optional)

                                                                                                                                    P10 led module (SMD 3 in 1)   led cabinet(Steel or Aluminum ) Project   Function  1. One picture can be cutted into several to show, meanwhile some big independent or combined background can be showed. 2. The led display can be divided into several windows to show the same content or different. 3. The iterative pictures or movies can be showed on the led display. Character 1. The background picture can be showed or compounded by video signal processor to one same picture. 2. Can bring people excellent visual and audio feeling. 3. Many actions of characters can be showed, such as scrolling, inserting, flying, moving etc, along with some personality video, makes the stage background and floor light much more beautiful. 4. Design to meet the customers other requests Advantage 1. Can be designed as cabinets structure, easy to install and remove , easy to apply for some big amusement place and big party places. 2. Compared to traditional methods, the color will be more bright and beautiful, some effect is as good as mirage. 3. High stability ( no dithering, flashing, plug loose). 4. Super long life span. 5. Except lighting area, other place will apply light black lacquer to ensure good display effect.   Control system Certificate for our products   Packing   Company profile   From 1996 to 2010, Xinhongxiang Optoelectronics (shenzhen) Co.,Ltd, mainly involved in LED encapsulation and LED Display.   Since 2010, owe to enlarge the company scale and build up self-owned brand, Rename to Shenzhen BESDLED Co., LTD, business involved in indoor and outdoor LED Encapsulation, LED Display and LED Lighting Products. Comparing with many of LED Manufactures, BESDLED owns the following advantages to be your best choice for long term cooperation partner. 1. Fully automatic production lines BESDLED owns the entire LED manufacturing line, encapsulate original Semiconductor to LED chip, then assemble to led display and led lighting products. 2.Advanced production equipment SMD/DIP die bolder, SMD/DIP wire Bolder, Auto Machine of Pouring Glue for SMD/DIP led, Spectrum and Color Separation Machine, LED oven, Wave solder, Reflow soldering, Spectrum electronic and color tester, temperature and humidity programmable tester, luminance meter etc. are equipped for our LED Product production. 3.Many certification approved to clear up the trade barriers CE, FCC, UL, RoHS, CCC,ISO9001:2000 etc are obtained. 4.Strong R&D Team BESDLED absorbs many talents, with more than 500 staffs, and including more than 100 engineers and technician, which paves the way for R&D for new products and excellent sales service .     BESDLED has 14 years experience of LED lamps encapsulation,  7 years of LED display screen, with complete special LED test lab, LED display R&D system, production system, QA, QC system.
BESDLED passed ISO9001:2000 in 2004, our products also passed CE, ROHS approval.
Our products have already exported to Europe, Asia, Africa and America and etc.   At BESDLED, we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive, cutting-edge product offering.   Our exhibition in Brazil
