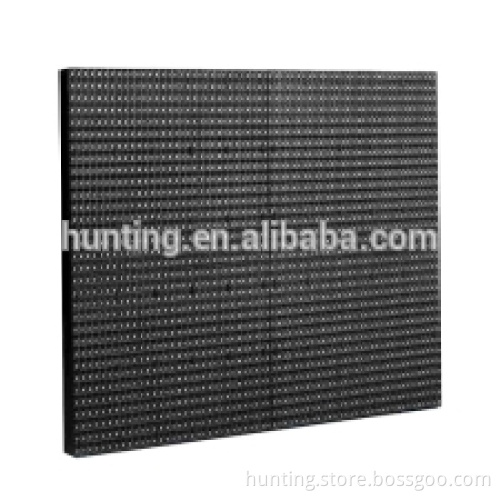

p3.9 p4.81 rental led display /SMD LED Video Wall / Night Club LED Video Wall P3.91 P4.8

Product Description Night Club /Music Show  P6 Indoor Die cast Aluminum LED display screen , Hanging Rental Movable P6 Indoor Die cast Aluminum LED display screen , Quick installation P6mm Die-Cast SMD Rental Rigging Slim LED panel , Specification:

	P3	P4	P5	P6
Pixel Pitch	3mm	4mm	5mm	6mm
Module Size	192mmx192mm	256mmx128mm	320mmx160mm	384mmx192mm
Module Resolution	64x64dots	64x32dots
Pixel Density	111,111 dots/sqm	62,500 dots/sqm	40,000 dots/sqm	27,777 dots/sqm
Minimum Viewing Distance	3m	4m	5m	6m
Brightness	1,500nits	2,000nits	1,800nits	1,500nits
Grey Scale	16384 level
Color Number	68.7194billion
Display Mode	Synchronous with video source
Refresh Rate	≥1920Hz
Driver IC	MBI5124/MBI5020
Drive Mode	1/32 scanning, constant current	1/16 scanning, constant current
Viewing Angle	Vertical 140° Horizontal 120°
Temperature Range	-20℃ to +60℃
Ambient Humidity	10%-99%
Service access	Rear
Power Consumption	Max: 905 w/sqm; Average : 300w/sqm	Max: 1020w/sqm; Average : 320w/sqm	Max: 650 w/sqm; Average : 220w/sqm	Max: 450 w/sqm; Average : 160w/sqm
Protection Level	Front: IP43 Rear: IP43
Lifetime to 50% brightness	75,000hr
LED Failure Rate	<0,00001(Led display line standard <0,0001)
MTBF	> 100.000 hours
Input power cable	AC110V / 220V
Certification	CCC,ROHS,CE
Warranty	2 Years quality warranty



Input Voltage

  Packaging & Shipping  packing and shipping 1).Safety Packing by wooden box or flight case.   2).Shipping by sea or shipping by air or international express DHL,UPS FedEx   Our Services  our service   1. Your inquiry related to our products or price will be replied in 24hrs       2. OEM&ODM,any your customized lightings we can help you to design and put into product       3. Distributoership are offered for your unique design and some our current models       4. Protection of your sales area,ideas of design and all your private information       5. Top Quality+Reasonable Price+Responsible After Service=Successful & Win   Company Information SHENHEN  BESDLED Co., LTD
