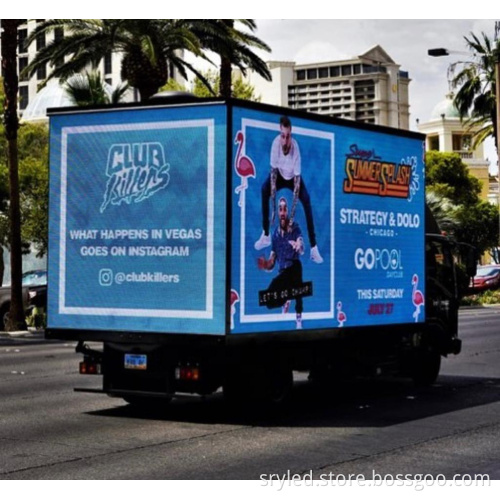

High-Brightness Outdoor LED Van Advertising Screens: P4, P5, and P6 Truck Displays for Mobile Digital Billboards
-
$780.001-49 square meter
-
$760.0050-199 square meter
-
$720.00200-19999 square meter
-
$450.00≥20000 square meter
- Min. Order:
- 1 square meter
- Min. Order:
- 1 square meter
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact NowSupply Ability: | 6000 Square Meter/Square Meters per Month |
---|---|
Payment Type: | L/C,Western Union,T/T,MoneyGram |
Port: | Shenzhen |
P6 Outdoor led Trailer
Specifications
Specifications of P6 outdoor led screen | |
Pixel pitch | 6mm |
Led package | SMD3535 |
Color configuration | 1R1G1B |
Module size | 192*192mm |
Pixel density | 27777/sqm |
Cabinet size | 2496*1536mm/according to pixel pitch and screen size |
Scan mode | 1/8 scan |
Cabinet weight |
40kg/sqm |
Brightness | 6000-6500cd/sqm |
Best viewing distance | 6-50m |
Waterproof level | IP65 |
Working temperature | -30~50 degree |
Power input | AC11V-220V |
Control system | Linsn/NOVA/COLORLIGHT |
Lifespan | 100,000hours |
Specifications of trailer
Trailer appearance | |||
Gross weight | 3500kg | Dimension (screen up) | 7020*2100*2458mm |
Chassis | German-Made AIKO | Max speed | 120Km/h |
Breaking | Impact brake or electric brake | Axle | 2 axles |
LED Screen | 4.992*3.072m | ||
Power parameter | |||
Input voltage | Three phases five wires 380V | ||
Inrush current | 30A | Average power consumption | 0.25kwh/sqm |
Multimedia Control System | |||
Video processor | VIDEOWALL | Model | LVP615S |
Luminance sensor | 1 | Multi-function card | 1 |
Power amplifier | Output power:250W | Speaker | power:100W*4 |
Hydraulic System | |||
Wind-proof level | Level 8 | Supporting legs | Stretching distance 300mm |
hydraulic rotation | 360 degrees | ||
Hydraulic Lifting and folding system | Lifting Range 2000mm, bearing 3000kg, hydraulic screen folding system |
Detail Images
Similar product for options
Led trailer with box (wihch can contain led screen and all accessories )
Company profile
SRYLED is a high & new technology enterprise . We founded in 2013 , specialize in all kinds of led display screens , including indoor and outdoor rental led display , indoor and outdoor fixed led display ,
small pixel pitch led display , led poster display , transparent led display and irregular led displays etc .
All of products passed the certificates CE , ROHS , FCC, CB , ETL , which ensure the reliability of led display and fast delivery request . SRYLED with its realiable quality and excellent service won the users' prasise from all walks of life .
Until now , SRYLED has built long term business cooperation with many customers from more than 100 countries , like USA, Canada , Mexico , Chile , Peru , Uruguay , Brazil , UL , France , Spain , Russia , Thailand , Japan , South Korea etc .
Against the backdrop of ever-change in the business world , SRYLED still insist on provide higher quality product and best service , we are looking forward to cooperate with you .
Workshop tour
Recommended products
1. Stage rental led display
P2.6 P2.976 P3.91 indoor led screen
2. Small pixel pitch led video wall
P1.25 P1.56 P1.875 indoor led video wall
3. Outdoor fixed installation led billboard
P6 P8 P10 outdoor led billboard
4. Transparent led display
P3.91 -7.81 indoor transparent glass led screen
5. led poster
P2 P2.5 P3 indoor led poster
Certificates
Package
Service
1, Guarantee
(a) we guarantee that all of our LED displays and necessary components are well tested before shipment, and we will replace or repair the goods if any problem that belongs to us happens during 2 years.
(b) we provide free life-time maintenance and only charge the raw material cost.
2, Technical Support
(a) we provide free technical support, which includes operation training and maintenance training in the factory
(b) we can send our engineers to your country after negotiation
3, Maintenance and Consultation
(a) we provide full maintenance for a lifetime and only charge the raw material cost
(b) we also provide lifetime consultation through Email, SMS, Phone call, etc.
4, Documents and Certificates
(a) we provide all necessary user's manual, software, test report, CAD drawing, etc.
(b) we can also provide all kinds of certificates, such as CE, RoHS etc.
