Alibaba ShenZhen indoor light weight vedio p6 rental led display

Specifications p6 rental led display

Nice appearance & secure

Light, suitable for flow shows

CE ROHS

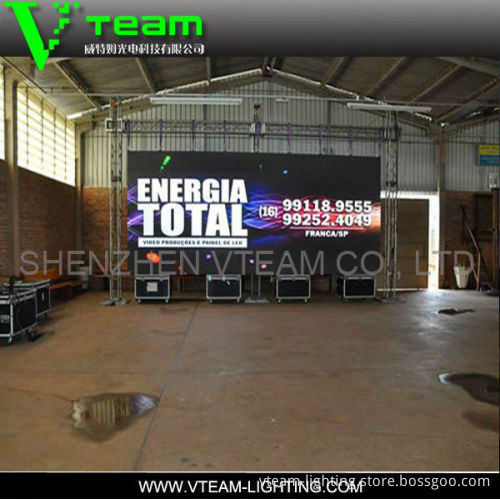

  Alibaba ShenZhen indoor light weight vedio p6 rental led display     An5/6/7is a light and thin product that very suitable for lighting rental and large square application. Jointed correctly, easy to install and dismount, simple constitution with the performance of secure and durable. The size unit size is 1000mm*500mm*62mm ( L*W*H), while the weight is only 10kg. An5/6/7 with the performance of light and thin are very suitable for application on entertainment areas, such as TV stage and clubs. It could change colors and show videos. The show effect are pretty clear, true and magic. An series is the best choice for creative designing company to produce large square image.     p6 rental led display           1. Light, suitable for flow shows, convenient in transporting and jointing.           2. Nice appearance and secure.           3. Jointed correctly, could be dismounted by one person without tool.           4. Humanized operating interface with breakdown indicator lights.           5. High debugging brightness and no damage to gray scale, matched well with the debugging technology with nice image.       An application as below,  Stage design; Show & exhibitions;  Entertainment venue;Company events;Club;Others;

Item	An6	An7	An8
Pixel Pitch	6.944mm	7.8125mm	8.92mm
LED type	RGB 3in1 SMD3528	RGB 3in1 SMD3528	RGB 3in1 SMD3535
Pixel Density	20736dots/m2	16384dots/m2	12544dots/m2
Resolution	144x72dot	128x64dot	112x56dot
Cabinet size	1000x500x62mm	1000x500x62mm	1000x500x68mm
Weight	10kg	10kg	13kg
Waterproof rate	IP43	IP43	IP65/IP43
Brightness	1300nits	1300nits	4000nits
View Distance	7m	8m	10m
Viewing Angle (H/V)	140°/120°
Gray Scale	14bit
Color type	68 Billion
Max.Power Consumption	120W/PCS	120W/PCS	250W/PCS
Ave .Power Consumption	60W/PCS	60W/PCS	130W/PCS
Refresh rate	1960Hz
Gamma	-5.0~+5.0
Applied environment	INDOOR	INDOOR	OUTDOOR
Controller	Synchronous display with control PC by DVI
Support Input	Composite ,S-Vide ,Component ,VGA,DVI,HDMI,HD_SDI
Power input	AC 220V±10%
Environment	temperature -10°C~+50°C,humidity 10~90% RH
Operating Life	50,000hours

  After-sales Service:            1) Guarantee: 2 - 3 years          2) Offer technical guides for controlling breakdowns; arrange engineers for vexed problems.               3) Timely come up with solutions for customers' doubts       Why Choose Us?            1) Innovative LED Screen Manufacturer for indoor&outdoor rental events and fixed projects.                  2) Strong R&D team ensures products with nice features.            3) VTEAM mainly focuses on achieving customers' innovative ideas by customizing lead screens.               4) Wide Applications: TV Station, studios, auto shows, concerts, clubs, discos, building facade, exhibitions, celebrations, etc.       FAQ   Q1: What's the pixel pitch forTn Series LED Display Screen?
   A1:  6mm/7mm/8mm    Q2: Where is it used for?
 A2: Indoor/outdoor & rental use. Widely used for backdrop of staging event, rental business, liveshow, concert, etc.

 Q3: Can it play HD video?

 A3: Yes, it can realize HD video function with Novastar controlling system.    Q4: What's the controlling system?    A4: Our standard controlling system for this model is Novastar. Also support other controlling system, like YDEA, Linsn, etc.    Q5: How about the size of project? A5: Pls offer the size with "width by height" of project. We wil offer the suitable solution for your project size. I will appreciate it if any drawing files about installation offered.    How to Contact Us?                                                                                                          Send your Inquiry Details in the Below For sample, Click "Send" Now!
