P35/55/80 flexible led modules for backdrop / stage decoration

Specifications P35/55/80 flexible led modules for backdrop / stage decoration

1.freely assembled shapes

2.custom size

3.high transparency

              P35/55/80 flexible led modules for backdrop/stage decoration   Overview of gDOT soft led curtain   Unique and innovative screen which demand has already exceeded the expectations. Usually used for arena,club,disco ,hotel ,TV station ,stadium or stage ceiling illumination ,it can create any venue very cozy, spectacular, even thrilling and breath-taking. gDOT soft led curtain can be of any size and shape giving you limitless options where to use it.

It's formed by dot ,string and then modules .With the advantage of very flexible and soft structure ,the screen can be freely assembled into any desired shapes . Very high transparency of 80% make it create a very dreamy effect when lighting on .Now we use new ways of magnetic connection ,screen can be connected in seconds ,which is perfectly suitable for large-scale stage application .

The size is customized by our customers without extra cost .For that reason ,many customer can meet their different needs .Also ,we have IP43/65/66/67 for option .They are usually applied for building decoration and lighting .

In total ,it can be used as soft led curtain screen / soft led curtain display / concert stage background led display / soft led screen / folding led display / flexible led screen /transparent led curtain screen for stage background or ceiling .   Product Feature of gDOT soft led curtain Ultra thin, lightweight, transparent led flex display screen system, the thickness of whole screen is less than 28mm. Flexible and soft for quick installation. Irregular shapes and dual side visual display. Custom size . Pixel pitch range from 35mm,55mm,80mm,110mm,160mm available. Waterproof IP43/IP65/IP66/IP67, indoor/outdoor Popular use for rental market and fixed installation. Application of gDOT soft led curtain TV shows,live shows,stage background display Party,stage lighting,vocal concert,beauty pageant competitions Hotel,night clubs ceiling and floor decoration Architectures lighting decoration  Specification of gDOT soft led curtain

Item Name	gDOT-35	gDOT-55	gDOT-80
Pixel Pitch	35mm	55mm	80mm
Pixel Density(dot/sqm)	816	330	156
Brightness	2200 nits	900 nits	420 nits
Max.Power Consumption	370 W	150 W	70 W
Ave.Power Consumption	180 W	75 W	35 W
Pixel Configuration	RGB 3in1 SMD3535
Viewing Angle	H120° V120°
Refresh Rate	≥1000 Hz
Gray Scale	12 bits
Colors	68.7 Billion
Control System	PC based dynamic capture & mapping.
Operating Life	> 50,000 hours
Power Supply	AC 220V±10%, 50/60Hz
Protection Level	IP65 on pixel strings, IP54 on signal distributor
Working Environment	temperature -30~50°C, humidity 10-90%RH
Certification	CE,ROHS

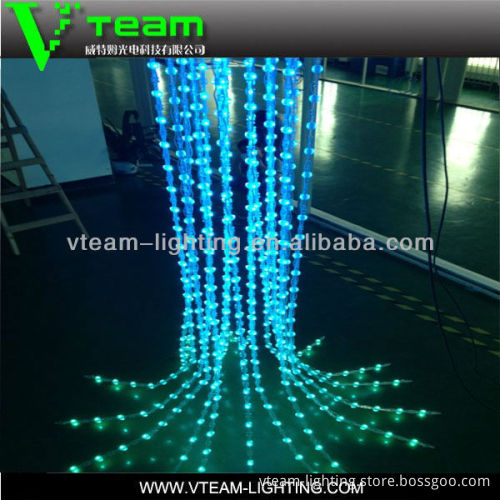

  About Vteam    Different from other suppliers ,Vteam is professional creative led display manufacturer who is focus on designing and manufacturing CREATIVE led display / led screen.Many of our new and creative idea about screen will be applied in practice and bring more benefit and convenience to our customers .   Vteam Exhibition information   LDI show in Las Vegas in November 22~24 ,Netherlands  Amsterdam ISE exhibition in 4~6 February 2014 ,Prolight + sound in Germany  Frankfurt in May 12~15 ,more international exhibitions are in booking ....   Photos of gDOT soft led curtain
