Newest innovation waterproof led flexible led mesh screen for building facade

Specifications waterproof led flexible led mesh screen

ultra thin, weight light, 80% transparent

can be curved,rolled up

CE RoHs

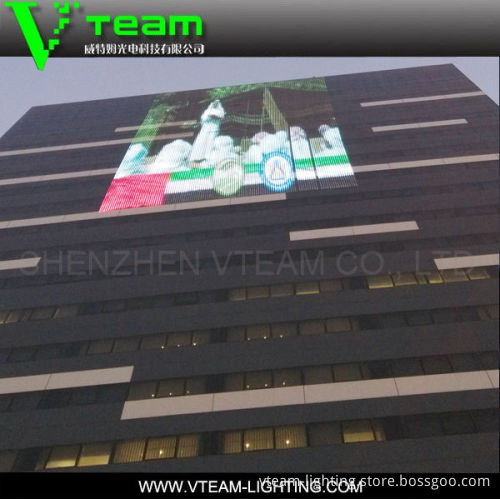

  Newest innovation waterproof led flexible led mesh screen for building facade     Overview:   Mahjong is a kind of lightweight LED string, which could also gather together to be the transparent full color display system by convenient accessories. Its features are flexible installation, light weight, highly transparent, which are adapted to various kinds of installation, such as bend, fold, winding, swing, etc.. It is high artistry and creativity that can be free to assemble into various shapes.It is the best choice to achieve the perfect solution that making use of the LED video technology integrate with stage design, ceiling and any other architectures, both for indoor and outdoor.   IP 66, suitable for permanent outdoor or indoor use. The pixel pitch could be customer-made. Rich installation accessories, flexible installation, adapting to different scenarios. High permeability, go through light, air and smoke easily. We could achieve the flexible application of dot, line and face. No worry about the limitation of the application, we could achieve kinds of dysmorphism and test count. It is best choice for the creative design company to achieve easier design and various applications by one product

Model	MJ3- 55	MJ3- 55H	MJ3- 80	MJ3- 80H
Pixel pitch	55mm	55mm	80mm	80mm
Pixel density	330 / sq meter	330 X 2 / sq meter	156 / sq meter	156 X 2 / sq meter
Pixel composition	3 LEDs ( LED: RGB 3in1 SMD)
Brightness	2200 nits	2200 nits	1000 nits	1000 nits
Pixel surface	SINGLE	DUAL	SINGLE	DUAL
Max.Power Consumption	≤ 450 W	≤ 900 W	≤ 210 W	≤ 420 W
Ave.Power Consumption	≤ 225 W	≤ 450 W	≤ 105 W	≤ 210 W
Model	MJ4- 55	MJ4- 55H	MJ4- 80	MJ4- 80H
Pixel pitch	55mm	55mm	80mm	80mm
Pixel density	330 / sq meter	330 X 2 / sq meter	156 / sq meter	156 X 2 / sq meter
Pixel composition	4 LEDs (LED: RGB 3in1 SMD)
Brightness	3000nits	3000nits	1500nits	1500nits
Pixel surface	SINGLE	DUAL	SINGLE	DUAL
Max.Power Consumption	≤ 600 W	≤ 1200 W	≤ 280 W	≤ 560 W
Ave.Power Consumption	≤ 300 W	≤ 600 W	≤ 140 W	≤ 280 W
General parameters
Viewing angles	H120° V120°
Refresh rate	≥1000 Hz
Gray Scale	12 bits
Color space	68 Billion
Control system	PC based, dynamic capture & mapping.
Operating Life	> 50,000 hours
Power supply	AC90~260V, 50~60Hz,Meanwell
Protection	IP66 on pixel strings, IP54 on signal distributor and power box.
Work environment	temperature -20~50°C, humidity 10-90%RH
Weight	6KG / pixel roll, 3.8KG / power box
Flight case	length 1.26m, height 0.85m, width 0.74m

  waterproof led flexible led mesh screen
