p10 indoor display tv wall curtain led panel rental P10

Specifications p10 indoor display tv wall curtain led panel rental P10

1.Cost effective

2.Rental application

3.Wide viewing angle

 p10 indoor display tv wall curtain led panel rental P10 Cn SERIES P10 / P12 indoor led display
Cn10/12 are light-weight, super-thin and high transparent led display screens, which are very suitable for lighting rental stage shows and large square applications. Unit size is 1000mm*500mm*54mm ( L*W*H ), while the weight is only 7.5kg, which will be cost-effective ones for larger scale projects .   Great improvements have been made, ensuring Cn's wider capability for indoor & outdoor application, more concise structure and better performance.   1) Smart door for screen back cabinet  Updated Cn 10 / 12 screens make back cabinet flexible, with spring block to open and close the door, very convenient to check, maintain, etc.    2) Waterproof feature   Outdoor verison Cn 10 / 12 screens are totally waterproof with IP65 ,brightness about 5000Nits/ sqm ,designed for outdor AV rental use .   3) Clear inside wiring of back box for easy maintenance  Inside wiring of back box is very concise of updated Cn SERIES P10 / P12 led display. Power cables and signal cables are divided seperately on 2 sides of curtain module, no intersection any more. This helps keep very stable performance, and convenient maintenance if destroyed.   Product Features of Cn SERIES P10 / P12 indoor led display Cost effective: Great investment since it can be used for a wide range of applications that will attract and impress manycustomers. Rental application : Good price with high preformance , With outdoor design ,can be used indoor or outdoor . Increased brightness with impressive high resolution and contrast levels. Wide viewing angles for maximum audience participation. Easy to use. Cn SERIES P10 / P12 indoor led display can be quickly and easily installed and dismantled without any tools. The use of SMD LED display technology enables great uniformity even at short viewing distances. 14 bit processing brings superior color depth and uniformity. High refresh rate to make sure that even under HD camera ,there is no scan lines and display a very geogeous and smooth video image . IP65 protecting rate against water, moisture and dust. Specification of  Cn SERIES P10 / P12 indoor led display

Item Name	Cn10	Cn10A	Cn12	Cn12A
Pixel Pitch	10.4166mm		12.5mm
LED Type	SMD3528	SMD3535	SMD3528	SMD3535
Pixel Density	9216dots/ m2		6400dots/ m2
Pixel Matrix	96x48dot		80x40dot
Unit Size	1000x500x60mm
Weight	8kg	10kg	7.5 kg	9.5 kg
Protection Level	IP43	IP65	IP43	IP65
Application	INDOOR	OUTDOOR	INDOOR	OUTDOOR
Brightness	900-1500 nit	4500 nit	900 -1500 nit	4500 nit
Best Viewing Distance	≥10m		≥12m
Viewing angle	140°/140°	140°/140°	140°/140°	140°/140°
Gray Scale	14bit	14bit	14bit	14bit
Colors	687 Billion	687 Billion	687 Billion	687 Billion
Max. Power Consumption	200W/PCS	300W/PCS	150W/PCS	300W/PCS
Ave. Power Consumption	80W/PCS	100W/PCS	60W/PCS	100W/PCS
Refresh Rate	1920Hz	1920Hz	1920Hz	1920Hz
Gamma	-5.0~+5.0
Controlling System	Synchronous display with control PC by DVI
Supporting Input	Composite ,S-Vide ,Component ,VGA,DVI,HDMI,HD_SDI
Power Input	AC220V 50/60HZ
Working Environment	Temperature -10°C~+50°C,Humidity 10~90% RH
Tenure Life	50,000hours
Certificate	CE

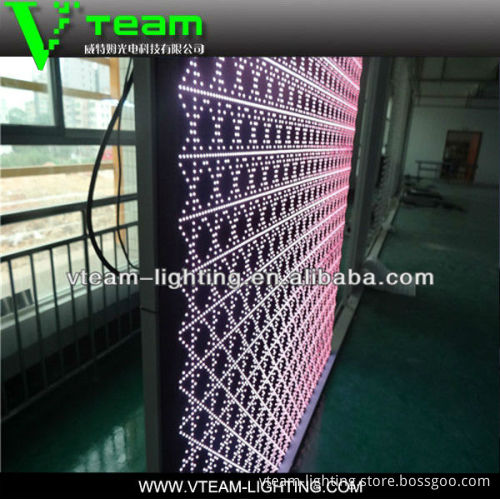

  About Vteam     Different from other suppliers ,Vteam is a young team who focuses on designing and manufacturing CREATIVE led display / led screen .Many of our new and creative idea about screen will be applied in practice and bring more benefit and convenience to our customers .   Vteam Exhibition information   LDI show in Las Vegas in November 22~24 ,Netherlands  Amsterdam ISE exhibition in 4~6 February 2014 ,Prolight + sound in Germany  Frankfurt in May 12~15 ,more internation exhibitions are in booking ....    Photos of Cn SERIES P10 / P12 indoor led display
