V-PH4

Specifications 1,2121 Black SMD.high refresh rate

2,128mm x 128mm module meet size tailor.

3,Compatible price under 2-year warrantyTechnical

  1,Technical specification :  LED Module parameters:

1,	pixel pitch	4mm
2,	pixel encapsulation	SMD2121 Black
3,	pixel configuration	1R1G1B
4,	Module size	128mm x 128mm
5,	Module resolution	32 *32=1024dots
6,	Driving method	1/16 scaner
7,	Driving IC	MBI5020

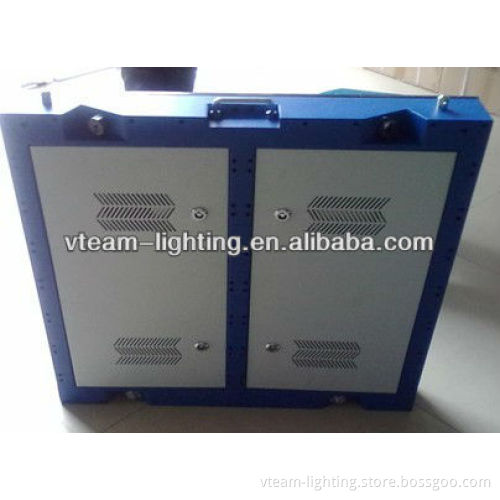

	LED cabinet parameter
1,	Cabinet size(L*H*D)	512mm x 512mm,768mmx768mm,896mmx896m
2,	Cabient resolution	62500 dots/s.q.m
3,	Module qty each cabient	16/36/49pcs
4,	Average power consumption	400w/s.q.m
5,	Cabinet material	Iron
6,	Cabient weight	20-25kg
	Screen paramters
1,	Density	62500dots/s.q.m
2,	Brightness	2200 nits
3,	Optimun View distance	>4m
4,	Gray scale	16bit
5,	Display color	281 trillions(synchronized)
6,	operating temperature	-30°c to 60°c
7,	operating humidity	10%-90%
8,	life span(50% brightness)	>100,000hrs
9,	MTBF	>10,000hrs
10,	IP(Front/Rear)	IP54
11,	Out of control Pixel rate	<0.0001

     2, Advantage of PH4           a. Energy saving      Vteam  has an advanced design for energy saving, we can save 20% of power consumption and reduce          30% of heat. It broadcasted the program more smooth and stable.      b. Quality assurance          Quality control is taken both in product design and production. As the quantity of PCB and other          components have been decreased and simplified. Our engineers can concern in a small quantity of                  defect to solve and it will be a substantial boost of the yield rate.      c. Easy to maintain due to its special design; 2-year warranty &free spare parts service.      d. Wide application           With its high refresh rate ,ideal choice for club,indoor fixed installation where require vivid and nice                   displaying visual effect
