4W GU10 9led smd5630 ampoule led
  • 4W GU10 9led smd5630 ampoule led
4W GU10 9led smd5630 ampoule led

4W GU10 9led smd5630 ampoule led

Payment Type:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Min. Order:
100 Piece/Pieces
Min. Order:
100 Piece/Pieces
Delivery Time:
3 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Guangdong, China (Mainland)
Supply Ability: 10000 Piece/Pieces per Week Sample order is welcome
Payment Type: L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal
Product Description
Product Description
Specifications 1.9led smd5630

2.Al and paiting white

3.free voltage 12V/24V/85-277V

4.High LM replace 50W Halogen

5.CE ROHs

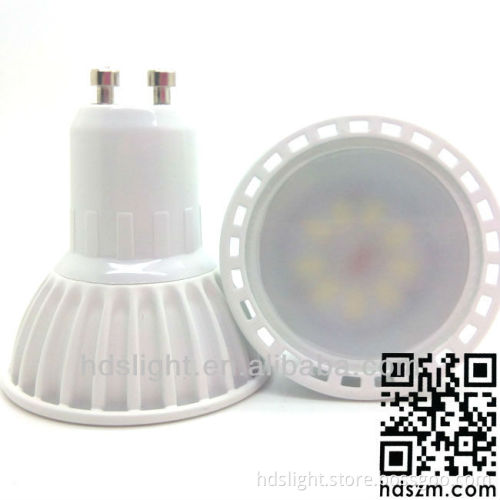

PICTURE OF COB SPOTLIGHT bulb

led bulb lamp MR16 socket

















PACKAGE OF COB LAMP



PACKING







PRODUCT ILLUSTRATION





Model No: HDS-S6050-9smd
Base type: GU10
Voltage: 85-265V or 12V Frequency: 50/60HZ
Current: 320mA±10mA  color temperature: 2700-7000K
LEDQ'ty: 9pcs LED Chip: Epistar(Taiwan)or Samsung
Power: 4W    Life span: >50000hours
Body material: AL+painting Ra: 78%-82%
Lumens: 300-350lmLM    Certificate: CE ROHS
Beam Angle: 120°    Remark: Can change toB22/E26/E27/MR16Base type
Net weight: 80g IP: 44
Dimension: Φ50*52mm
boxDimension: 52*52*65MM Note: Dimmable can do
CartonDimension: 55CM*28CM*28CM(200PCS/Carton)

Model No: HDS-S6050-9smd-mr16
Base type: MR16
Voltage: 85-265V or 12V Frequency: 50/60HZ
Current: 320mA±10mA  color temperature: 2700-7000K
LEDQ'ty: 9PCS  LED Chip: Epistar(Taiwan) Samsung
Power: 4W    Life span: >50000hours
Body material: AL+painting Ra: 78%-82%
Lumens: 300-350lmLM    Certificate: CE ROHS
Beam Angle: 25/40/60°    Remark: Can change toB22/E26/E27/MR16Base type
Net weight: 80g IP: 44
Dimension: Φ50*52mm
boxDimension: 52*52*65MM Note: Dimmable can do
CartonDimension: 55CM*28CM*28CM(200PCS/Carton)


Product

 Information

Product Name: 4W 9led smd spotlight

Packing

Details

1pcs/ white box
Part No.: HDS-S6050-9smd 6pcs/inner box
Unit: pcs 72pcs/carton
Sample Price: US.00 Net weight: 5.1kg/carton

Price(1000pcs-):

US.00 Gross Weight:6.0KG/carton
Price(5000pcs-): US.50 Carton Size: 37*37*20cm
Price(10000pcs-: US.00 64440pcs/20 feet container
MOQ: 144PCS
                        Color Tempreture
ELECTRICAL CHARACTERISTIC



Product parameters table

 gu10 spotlight bulb infomations



Specific Length: 52mm
Diameter: Φ50mm
LED Consumption: 4.5W
Power Consumption: 4W
LED Type: 5630smd or 5730smd
LED Qt'y.: 9
Voltage: AC85-265V
Lumen: 350LM


Technical

Parameter

Material: Die-casting AL Beam Angle: 120°
CRI: Ra>72 PF: 0.55~1
Lighting Efficiency: 85LM/W Working Temperature: -20°C to +65°C
Luminous Intensity: 1m:71lux Color temperature: Cool White: 6300K
2m:26.8lux Nature White: 4500K
3m:12lux WarmWhite: 3000K
Protection Rate: IP44 Power Efficiency: 86%
THD: <12% Lifetime: ≥50,000hrs
    Dimmable must add us$2.
All data is under 25°C,unless otherwise specified.
Related Products





APPLICATION AREA

Available for indoor lighting for office building,Factory,Shopping mall and living room., ect


WHY CHOOSE US?

HDS is unique in its ability to provide end-to-end solutions through its innovative and proprietary systems-all to enchance customer competitiveness and success. Working through three business groups( HDS mailand China, nk Charms Hong KONG, SLA LED Latvia) and several business unites( Design, R&D, QC, Sales), HDS is able to unleash the full potencial of your venture.





Our services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours
2. We own well-tranied and passional sales & after- sale services who can speak fluent Engligh language
3. We offer OEM services. Can print your own logo on product , can customize the retail box

    packing and other things.

4. We have very experienced R&D engineers and we have strong ability to do ODM projects.

5.We will complete the security measures about your sales area, ideas of design and all your

    private information.



WHO WE ARE?

HDS IS a manufacture and supplier of LED lighting products includeding LED spotlight, down light, tube light, decorative light, project light and other sectors. A high-tech production facility is located in Guanlan high-tech park shenzhen, China.





MEET OUR TEAM !

People make the differnce. People with passion have an even greater impact.As a professional manufacture, HDS is consist of different function units: Each member of the team is decicated to enabling a unique design, better quality, faster delievery and high cost-effective LED lightings products.





R&D

Our R&D team can handle highly custmozed product design, and all kinds of OEM projects, reflecting the latest technological advances and highest manufacturing techniques.

DESIGN

The german design team has track record in industrial design with international recognitions such as if product design award.

CERTIFICATION

HDS have CE and RoHS certification for all current products. We can also help you to obtain more needed certification such as TUV, UL, 3C ect. In the short term we intend to initiation regulation of the company's business according to European ISO standards.



VALUE

In HDS, there is no space for mediocrity. What HDS creats is value. From product ramp-up, delievery, and the ability to maintain the high quality and cost effective, you will have our full support. With a high quality LED lamps, HDS can enable any customer's success.

  Welcome to view HDS product, any your question and opinion feel free to contact we. we will reply you within 24 hours.
