Touch panel warm white led controller,New product warm white led controller

Specifications 1:Touch panel warm white led controller

2.New product warm white led controller

3:12-24V

4:CE/ROHS

5.warm white led control

Welcome OEM service,thank you    Packaging & Delivery   Packaging Details: inner colorful high-end box and outer carton,50-100pcs per carton,.   Delivery Detail: 3-7working days after confirmed the order and received the deposit.   1:warm white led controller
2.12-24V,8A: Touch panel warm white led controller
3:Warm+Cold white : Touch panel warm white led controller
4:CE/ROHS

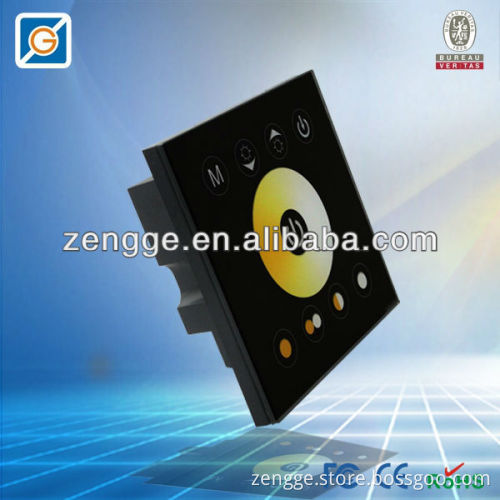

5.Home lighting decoration for Touch panel warm white led controller     Touch panel warm white led controller,New product  warm white led controller              Ⅰ.Summarization warm white led controller is a new high-end controller which newly developed by our company. Glass panel design looks beautiful and fashionable. It adopts high precision capacitance touch control chip, increases the touch sensitivity, reduces trigger which caused by mistake. It is used for controlling a variety of lamp whose light source is LED. For instance, point source of light,flexible light strip, panel lights etc.In addition,it can be connected convenient, use easily and other advantages.Can achieve cold light,warm light,white light and other light effect.   Ⅱ.Technical Parameters for Touch panel warm white led controller   1> working temperature: -20-60 °C 2>supply voltage: DC12~24V 3> output:2 channel 4> external dimension: L86ΧW86ΧH32 mm 5> packing size: L105ΧW105ΧH47 mm 6> net weight:108.5g 7> gross weight: 170g 8> static power consumption: <1W 9> output current: <4A*2 10> output power: 12V<96W, 24V<192W   Ⅲ.External Dimension for Touch panel warm white led controller       IV.Interface Specifications   V.Controller Instruction for Touch panel warm white led controller
  Touch panel warm white led controller,New product  warm white led controller   On touch panel,there are total 9 key and 1 color temperature ring.   I  key:trun on/off controller at any state   A  key:choose mode.Total 9 modes can be choose cyclically.   B key:slow dynamic mode’s speed down, 100 grade of speed.You can press it continuously .The key will be not useful until reach the slowest speed.   C key:accelerate dynamic mode’s speed up  100 grade of speed. You can press it continuously .The key will be not useful until reach the slowest speed.   D key:delay shutdown.After pressing this key ,light will stop work 2 minutes later.Before light shundown, press any key or brighness ring will let delaying shutdown fail.   E key:output 100% warm white+0% cool white.Press this key at dynamic mode,mode will be changed to static output.It is unuseful to press this key when shutdown.   F key:output 100% warm white+100% cool white.Press this key at dynamic mode,mode will be changed to static output.It is unuseful to press this key when shutdown.   G key:output 50% warm white+50% cool white.Press this key at dynamic mode,mode will be changed to static output.It is unuseful to press this key when shutdown   H key:output 0% warm white+100% cool white.Press this key at dynamic mode,mode will be changed to static output.It is unuseful to press this key when shutdown   Color temperature Ring:Touch this ring at any state,mode will be changed to static output.   Total 9 modes as follows:

Item No	Functions	Remarks
1	warm white gradual changing	speed adjustable
2	cool white gradual changing	speed adjustable
3	warm and cool white gradual changing	speed adjustable
4	warm white strobe changing	speed adjustable
5	cool white strobe changing	speed adjustable
6	warm and cool white strobe changing	speed adjustable
7	warm white jumpy  changing	speed adjustable
8	cool white jumpy  changing	speed adjustable
9	warm and cool white jumpy  changing	speed adjustable

  Touch panel warm white led controller,New product  warm white led controller   VI.Typical Application for Touch panel warm white led controller VII.Installation Method for Touch panel warm white led controller 1.gently pry gaps in touch panel with  “---” style screwdriver,then you can slowly remove the panel.As follows:     2. remove the cable. Pull the locking of the cable transposon, and then you can slowly remove the cable.As follows: 3.Fix the base of controller in the 86×86 installation box (customers need to buy the installation box by themselves) on the wall with screws.As follows:     4.use your hand gently pull down the cable seat lock according to step 2, plug the cable into cable seat, press the lock, and mount the cable of panel on the base, as follows:     Touch panel warm white led controller,New product  warm white led controller   VIII.Installation is completed now. As follows:     Remark:   1. Connect the load wire at first, following connect the power wire; Before power on,pls  make sure all wire were connected correctly and no short circuit.   2.The range of supply voltage is DC12V~DC24V.Controller may be burned out once exceed the voltage ranges.   3.For the panel is made of glass,pls gently install it.   4.Never overload.( Touch panel warm white led controller)   Thanks for looking over our Touch panel warm white led controller,New product warm white led controller ,looking forward your good news!   The-end :  Touch panel warm white led controller,New product warm white led controller ...
