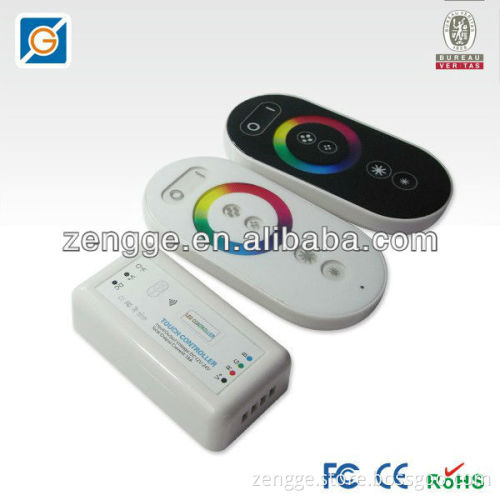

DC12v/24v rf RGB programmable led light touch controller

Specifications DC12v/24v rf RGB programmable led light touch controller

1.12-24V touch led controller

2.Programmable Light controller

3.RGB

  DC12v/24v rf RGB programmable led light touch controller   I.Technical Parameters(remote control)
1 Power supply: AAA battery * 3pcs
2 Cover material:ABS
3 Fabrication processing:   multicolour printing & UV varnish   II.Technical Parameters(controller)
1 Working voltage: DC12V
2 Output control: 3 circuits(R/G/B)
3 Control current: 6A/circuit
4 Connecting mathod: common anode
5 Dimension: L66*W64*H24
6 Receiving range:20meters   III.Functions of Keys
1 Key 1: on/off
2 Key 2: light changing mode(15 modes)
3 Key 3:color light/white light switching mode
4 Key 4: turn up(brightness/speed)
5 Key 5: turn down(brightness/speed   IV.How to use
1 Press Key 1 to turn on/off in any state
2 Press Key 2 to activate light changing mode, a new mode each press,15 modes in tota
3 Press Key 3 once to activate white light mode, changing brightness by pressing Key 4/Key 5. Press Key 3 twice to activate color light mode, changing brightness by pressing Key 4/Key 5 or changing light color by touching the color ring
4 Resume fuction. The previous settings will be resumed while power on again
5 Matching code
Press Key 4 once within 3 seconds when power on again,the light will blink 3 times if matching is successful.
Clearing Code
Press Key 4 five times within 3 seconds when power on again,the light will blink 6 times if clearing is successful

1	Auto color changing	8 grades of brightness to adjust by pressing Key 4 or Key 5.
2	three colors jumps to change	8 grades of speed to adjust by pressing Key 4 or Key 5	9	Gree color jumps to change	8 grades of brightness to adjust by pressing Key 4 or Key 5.
3	seven colors jumps to change		10	Yellow color jumps to change
4	three colors jumps to gradual change		11	Cyan color jumps to change
5	seven colors jumps to gradual change		12	white color jumps to change
6	red color jumps to change	8 grades of brightness to adjust by pressing Key 4 or Key 5.	13	Red/blue light twinkles alternately	8 grades of speed to adjust by pressing Key 4 or Key 5.
7	Blue color jumps to change		14	Green/blue light twinkles alternately
8	Purple color jumps to change		15	Red/green light twinkles alternately

  V.Connecting chat   Package Including: 1 x LED Controller 1 x Touch Panel Remote Control 1 x User Manual   Our Advantages: 1.  Ex-factory price 2.  3 year quality warranty 3.  more than 4 years experience in developing LED controller and LED strips 4.   Familiar with international market and offer OEM and ODM 5.  Professional engineer serving for you ...
