Single color controller Touch Panel Color ring 12V-24V LED Wall type CONTROLLER

Specifications Single color 12V 12A LED touch panel wall tapy controller

1.Wall type 11modes

2.12V<144W,24V<288W

3.3channels

4,CE RoHS

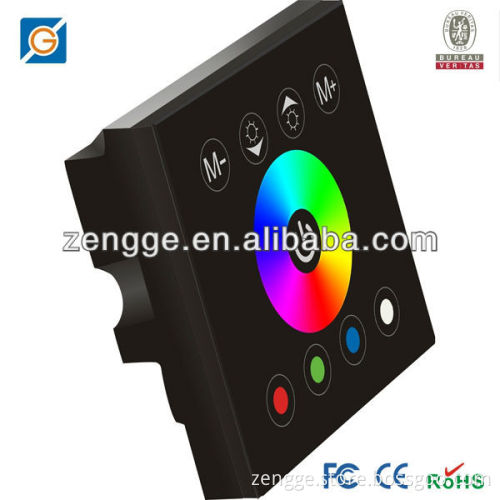

Touch Panel Color ring 12V-24V LED Wall type CONTROLLER

Description

Wanna lead a trend and be distinguished from others? Try this TorchStar brand new LED controller with touch panel. This multi-function LED Controller enables you to change colors, adjust brightness and color temperature in a quick and easy way--a simple TOUCH, which is direct, efficient and unique. This controller is perfect to be mounted on the wall along with all your other switches. Uncover the glass touchscreen, you will find 2 screw holes and you can fix it to your wall with only 2 screws.Please see controller dimension for reference. (L86×W86×H36mm).   Functions in detail: ON/OFF button. "M": Mode selection and switch button. Left button: increase(brightness or speed) one level at a time Right button: decrease (brightness or speed)one level at a time Rainbow Color Ring: immediate color selection or gradual color change

    Technical Parameters       Working temperature: -20-60 °C     Supply voltage: DC12~24V     Output: 3 channels    Connection mode: common anode    External dimension: L86 Χ W86 Χ H36 mm    Packing size: L140 Χ W50 Χ H60 mm   Net weight: 125g    Gross weight: 150g    Static power: <1W    Output current: <4A( each channel )    Output power: 12V<144W,24V<288W
Interface Specification
Controller instruction:
    : you can turn on/off controller output at any time;
: this key have 2 functions:
           1.M is mode choose key, so when the current control mode is pulley mode(color), if you want to realize the mode(color) of M key, can press this button.            2.M is mode switch key, so when the current control mode is “M” key mode, can press this button to switch the mode(color) which state in the M key mode table.
: the output signal brightness or speed control, every time you press this button, the brightness or speed series add 1, altogether 100 levels;
: the output signal brightness or speed control, every time you press this button, the brightness or speed series minus 1, altogether 100 levels;
: Multicolor pulley touch key, static mode choose key, more than 60 touch points.
                       The button has two functions:
                       1.Pulley static color choice key, so when the current control mode is M key mode (color),                    If must realize pulley static color, can press this key.
                       2.Pulley color switch key, can change from 60 kinds of static colors (as the pulley shown).     Changes of M key on the touch remote as below:

Mode number	Function	Remark
1	Static red	brightness is adjustable,Speed is unadjustable
2	Static green
3	Static blue
4	Static yellow
5	Static purple
6	Static blue-green
7	Static white
8	Three color jumpy changing	Speed is adjustable, brightness is unadjustable
9	Three color gradual changing	Speed is adjustable, brightness is unadjustable
10	Seven color jumpy changing	Speed is adjustable, brightness is unadjustable
11	Seven color gradual changing	Speed is adjustable, brightness is unadjustable

      Typical Application                  Packing:     1x Touch Panel Controller   1 Manual
