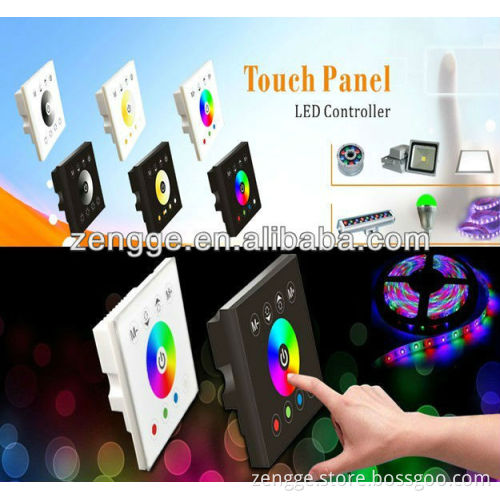

DC 12V-24V 12A / 3channels LED Touch Panel Controller 4 Touch Button

Specifications DC 12V-24V 12A / 3channels LED Touch Panel Controller

1.Wall type 11modes

2.12V<144W,24V<288W

3.3channels

4,Touch dimmer

  DC 12V-24V 12A / 3channels LED Touch Panel Controller 4 Touch Button     Summarization   Touch panel controller is our new research and development of new high-end controller, the glass panel design, appearance beautiful, vogue. Adopting high precision capacitance touch control chip, increased the touch sensitivity, reduces by mistake triggered. It is used for control of the led lighting lamps and lanterns, for example: point light source, soft article light, wash wall lamp, glass curtain wall lamp, etc.; Has the wiring convenient, use the advantages of simple; According to the actual needs of customers can realize jump to change, gradual change, flash lights change such as frequency effect.

Technical Parameters       Working temperature: -20-60 °C     Supply voltage: DC12~24V     Output: 3 channels    Connection mode: common anode    External dimension: L86 Χ W86 Χ H36 mm    Packing size: L140 Χ W50 Χ H60 mm   Net weight: 125g    Gross weight: 150g    Static power: <1W    Output current: <4A( each channel )    Output power: 12V<144W,24V<288W


Controller instruction:
    : you can turn on/off controller output at any time;
: this key have 2 functions:
           1.M is mode choose key, so when the current control mode is pulley mode(color), if you want to realize the mode(color) of M key, can press this button.            2.M is mode switch key, so when the current control mode is “M” key mode, can press this button to switch the mode(color) which state in the M key mode table.
: the output signal brightness or speed control, every time you press this button, the brightness or speed series add 1, altogether 100 levels;
: the output signal brightness or speed control, every time you press this button, the brightness or speed series minus 1, altogether 100 levels;
: Multicolor pulley touch key, static mode choose key, more than 60 touch points.
                       The button has two functions:
                       1.Pulley static color choice key, so when the current control mode is M key mode (color),                    If must realize pulley static color, can press this key.
                       2.Pulley color switch key, can change from 60 kinds of static colors (as the pulley shown).     Changes of M key on the touch remote as below:

Mode number	Function	Remark
1	Static red	brightness is adjustable,Speed is unadjustable
2	Static green
3	Static blue
4	Static yellow
5	Static purple
6	Static blue-green
7	Static white
8	Three color jumpy changing	Speed is adjustable, brightness is unadjustable
9	Three color gradual changing	Speed is adjustable, brightness is unadjustable
10	Seven color jumpy changing	Speed is adjustable, brightness is unadjustable
11	Seven color gradual changing	Speed is adjustable, brightness is unadjustable

      Typical Application                  Packing:     1x Touch Panel Controller   1 Manual
