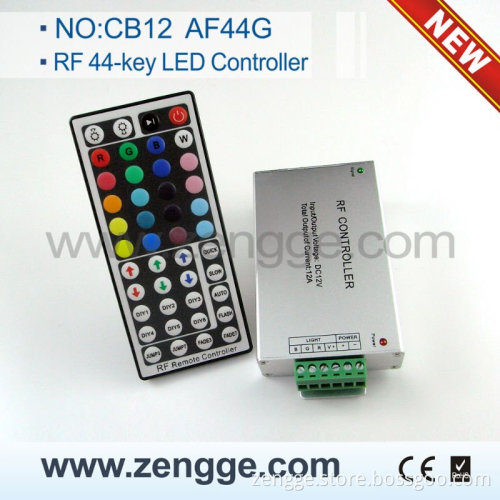

new china products for sale! (Aluminum)RF 44-Key LED controller

Specifications 1. Connecting: common anode

2. Output current: <4A(each channel)

3. 5V, 12V, 24V

4. with CE&RoHS

5.reasonable price

NAME: RF 44-Key LED controller(Aluminum) MODEL: CB12 AF44G             Summarization   RF 44-key LED RGB controller adopts the advanced micro control unit, it is used for controlling a variety of  lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp,  glass curtain wall light and so on; At the same time, it has many advantages such as convenient connection , simplicity to use and others. According to the actual need of customers, it can carry out jumpy changing,  gradual changing and other effects of change. Total 44 modes for your choice.   Technical parameters       Working temperature: -20-60 °C     Voltage supply: DC5V, 12V, 24V <optional> (for orders specify voltage)     Output: 3 channels     Connecting mode: common anode or common cathode    External dimension: L128ΧW65ΧH25 mm    Net weight: 190g     Gross weight: 204.5g     Static power consumption: <1 W     Output current: <4 A (each channel)     Output power: 5 V: <60W, 12V: <144W, 24V: <288W       External Dimension   Controller dimension:              Remote control dimension:            Direction for use   1. Connect the load wire at first, following by the power wire; Please ensure short circuit can’t occur between connecting wire before you turn on the power.   2. Standard color changes as follows:

Brightness +(8 in all)	Brightness –(8 in all)	Pause/Run	On/Off
Static red	Static green	Static blue	Static white
Static orange	Static pea green	Static dark blue	Static milk white
Static dark yellow	Static cyan	Static lyons blue	Static white pink
Static yellow	Static light blue	Static pink	Static green-white
Static light yellow	Static sky blue	Static brown	Static blue white
Increase red	Increase green	Increase blue	Speed up
Decrease red	Decrease green	Decrease blue	Speed-down
DIY Key1	DIY Key2	DIY Key 3	Automatic change
DIY key4	DIY Key5	DIY Key 6	Flash on and off
3 color jumpy change	7 color jumpy change	3 color fade change	7 color fade change

  Key instruction:       Connecting drawing   series connection:          parallel connection:                Packing:   1pc in white box, White box:  L137XW78XH57mm
100pcs/carton, carton size:L23'*W15.8'*H11.8'/2.48'         Our service:   1. Your inquiry related to our products or prices will be replied in 24 hours
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. OEM and ODM, any your customized Lighting & Controller we can help you design put into product
4. Distributorship are offered for your unique design and some our current models
5. Protection of your sales area, ideas of design and all your private information ...
