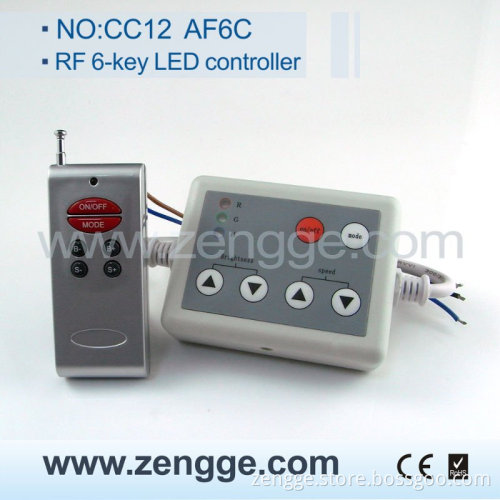

2013 new products on market! RF 6-Key Infrared LED Controller with CE&RoHS certificate

Specifications 1.Micro-computer control

2.easy connection, simplicity usage

3.jumpy&fade change

4.reasonable price

5.power down memory

  Technicial Parameter:

Working temperature	-20-60 °C
Supply voltage	DC5V, 12V, 24V(order specify required voltage)
Size	L90*W70*H28mm
Net weight	120g
Gross weight	160g
Output	Three CMOS drain- open output
Output current	<4A(each channel)
Output power	5V:<60W,12V:<144W,24V:<288W
Connecting Mode	Common anode/ cathode

  II. Control Method: Adopt button control method, function of each button as below (the same as remote): On/off: The output switch. Mode: is the style/color function key, could choose different color changes, 11changes in total. Brightness +: controls the brightness of output signal, each press brightness level+1, 256 levels in total; Brightness -: each press brightness level - 1. Speed +: each press changing speed +1, 100 levels in total; Speed -: each press changing speed -1   Style changing table as below:

No	Patterns	Remarks	No	Patterns	Remarks
1	Static red	Brightness is adjustable,Speed is unadjustable.	12	Red stroboflash	Speed and Brightness are adjustable
2	Static blue		13	Blue stroboflash
3	Static purple		14	Purple stroboflash
4	Static green		15	Green stroboflash
5	Static yellow		16	Yellow stroboflash
6	Static cyan		17	Cycan stroboflash
7	Static white		18	White stroboflash
8	Three-color jumpy changing	Speed and brightness are adjustable	19	R/B crossfade	Speed is adjustable, brightness is unadjustable
9	Seven-color jumpy changing		20	B/G crossfade
10	Three-color gradual changing	Speed is adjustable,brightness is unadjustable	21	G/R crossfade
11	Seven-color gradual changing

  III. Panel specification and connecting drawing as follows:
  Packing: 1pc in white box, White box:  L135*W78*H55mm 100pcs/carton, carton size:L23'*W15.8'*H11.8'/2.48'   Our Services: 1. Your inquiry related to our products or prices will be replied in 24 hours 2. Well-trained and experienced staffs to answer all your enquires in fluent English 3. OEM and ODM, any your customized Lighting & Controller we can help you design put into product 4. Distributorship are offered for your unique design and some our current models 5. Protection of your sales area, ideas of design and all your private information ....
