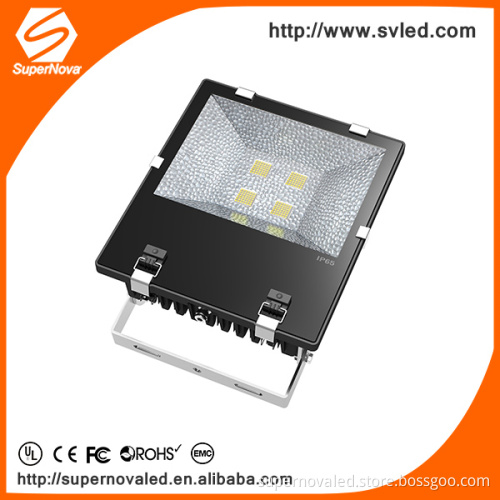

Waterproof usage CE ROSH Listed LED Outdoor Lighting Fixture

We accept Trade Assurance.
Waterproof usage CE ROSH Listed LED Outdoor Lighting Fixture   Outdoor Lighting Fixture Description:   1.Outdoor Lighting Fixture adopt high heat transmission aluminium alloy as its housing material ; 2. Outdoor Lighting Fixture have tempered glass on surface with silicon material waterproof protection ; 3. Outdoor Lighting Fixture have great thermal management, shock and impact resistant ; 4. Outdoor Lighting Fixture adopt high brightness high power integrated LEDs as light source ; 5. Outdoor Lighting Fixture have lifespan is 4- 5 times than lifespan of HPS, No maintain cost ; 6. 70% less power consumption than traditional light sources ; 7. 70%-80% electricity bill saving than HPS or Mercury flood light fixture; 8. Outdoor Lighting Fixture have more than 50000 hours lifespan , free maintenance .   Outdoor Lighting Fixture Features:   1. Projection Distance:>35m 2. Body Material:Pure Aluminum Alloy 3. IP Rating:IP65 4. Operating Voltage:90-305Vac 5. LED Chip : ///Bridgelux ; 6. Color Temperature : 3000K-6500K for optional ; 7. Warranty : 3-5 years .   Outdoor Lighting Fixture Application:   1. Retrofit for traditional bulbs ; 2. Bar, hotel, mall, exhibition,museum, gallery ; 3. Factory, square, sports hall, pier, bill board . Product Description     Outdoor Lighting Fixture:  Outdoor Lighting Fixture PCB Modules:   Led Chip for Outdoor Lighting Fixture:   Dimension of Outdoor Lighting Fixture: Structure of Outdoor Lighting Fixture: Outdoor Lighting Fixture ISO Illumination Data: Outdoor Lighting Fixture Applications Cases:
  Features of Outdoor Lighting Fixture:
Outdoor Lighting Fixture is a new type of LED lighting source, developed on the basis of the traditional flood light products, compared with the traditional floodlight, high thermal conductivity, light failure is small, light color purity, no ghosting, energy saving, environmental protection, long service life, etc, the products adopt constant current constant voltage control, power supply with high efficiency. 1. High efficiency & energy saving. Under the condition of the same llumination, Outdoor Lighting Fixture saves more than 70% energy compared with the traditional lamp.
2. Outdoor Lighting Fixture have long life span, Outdoor Lighting Fixture using semiconductor chip as the light resource, the life of Outdoor Lighting Fixture can be over 50,000hrs.
3. Outdoor Lighting Fixture is No UV & IR . It won’t distribute ray radiation.
4. Outdoor Lighting Fixture is Eco-friendly, No Hg & Xe ,or other harmful element. Recyclable, also it won’t generate EMI.
5. High performance external constant current drivers, no stroboscopic, good for eyesight protection.
6. Patent integrated light sources, high quality //Bridgelux/Epistar chip, high Light effects, high color rendering index.
7. Thermal design, integration of the advanced die-casting forming, small contact resistance, high cooling efficiency.
8. Protection level reaches IP65.  Welcome to order Shenzhen Advanced Outdoor Lighting Fixture 10w 30w 50w 100w 150w 200w Outdoor Lighting Fixture Parameters:

Power		200W
Input Voltage		AC90V-305V
Frequency Range		47Hz--63Hz
power Factor		>0.95
Power Efficiency		>92%
LED Working Voltage		DC27-36V
LED quantities		4 Pcs
LED consumption		200W
System Consumption		205W±1%
luminous efficiency of luminaire		>110lm/W
CCT	Warm white	3000-3200K
	Neutral white	4000-4500K
	Cool white	6000-6500K
Color Rendering Index	7	Ra>70
	8	Ra>80
	9	Ra>90
LED  Junction Temperature		≤70℃
Working Temperature		“-30℃~+55℃”
storage Temperature		“-25℃~+65℃”25℃ is the best
IP Grade		IP65
Working life-span		50,000Hours
Power line		18 AWG three core line
Brown		L (Positive line)
Blue		N (negative line)
Yellow/Green		Earth line
Color of lamp shell		black
certificate		FCC CE,ROHS, EMC LVD
Light packing dimension		48*42*25CM/1pc

Packaging & Shipping  1.Detail of Outdoor Lighting Fixture:Surface Treatment;spray paint /anticathode   Color : Black  IP grade IP65   Windproof;20 Grade   Packing size:
Outdoor Lighting Fixture packing size(master carton): 480*420*245MM/1pc Both inner boxes and cartons can be customized
2. The shipment of Outdoor Lighting Fixture can be DHL,UPS,FEDEX,TNT,and sea transportation,can be customized. Welcome to order  Professional Engineers Strictly Tested 150w Outdoor Lighting Fixture Our Services 1. Professional person communicate with you before the order.
     2. OEM&ODM, also provide customized service.
          3. Distributorships are offered for your unique design and some our current model.
               4. Protection of your sales area, ideas of design and all your private information.
                    5. Provide strict quality check for each part, each process before export.
                        6. Provide complete post-sale service, including installation, technical guide. So welcome to order Outdoor Lighting Fixture.       Company Information FAQ Q: What is the chips brand available for Outdoor Lighting Fixture?
A: We offer 3030 LEDs//Bridgelux to manufacture Outdoor Lighting Fixture.

Q: What is the application?
A:Outdoor Lighting Fixture apply for LED garden light, LED square light, LED airport light, LED hotel light ETC.Welcome to order Shenzhen Advanced Outdoor Lighting Fixture
Q: What are the advantages?
A: Outdoor Lighting Fixture adopt famous brand and Original led chips , High luminous flux up to 120-140Lumen per watt, Outdoor Lighting Fixture is easy to install, Light efficiency up to 110Lumen per watt. Outdoor Lighting Fixture have over 50000 hours lifespan.   Q: How about the service ?
A: Good quality , fast delivery , best price . Exclusive skill and unique solution of our professional engineers and staffs ,Reply in 24 hours ,Professional staffs answer for ur questions , OEM & ODM welcome   Q : How long about the delivery time ?
A: For Outdoor Lighting Fixture sample :3-5 days . For Outdoor Lighting Fixture mass production : about 7-15 days
Q: How about the quality ?
A: High-end product . Advanced design. Professional staffs . Good source of materials and production line . Good supervision of production. Exclusive skill and unique solution . Pay attention to details.  Welcome to order Shenzhen Advanced Outdoor Lighting Fixture
