pir sensor for toys, night lights, human detect, save energy
- Delivery Time:
- 3 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Guangdong, China (Mainland) |
|---|
Product Description
Product Description
Specifications mini pir motion sensor
1.high sensitivity
2.top pir factory in China
3.technical support
4.fast delivery,good price
Pir motion sensor D202X, perfect for toys and nights, other short distance detect system, customized for your projects, energy-saving Typical Applications 1.automatic control for lighting,, sensor switch, LED bulb, LED tube 2.security system, ir camera, alarm etc., 3.intellectualized toys applications, 4.any item need to detect human Technical Data for infrared sensor D202X

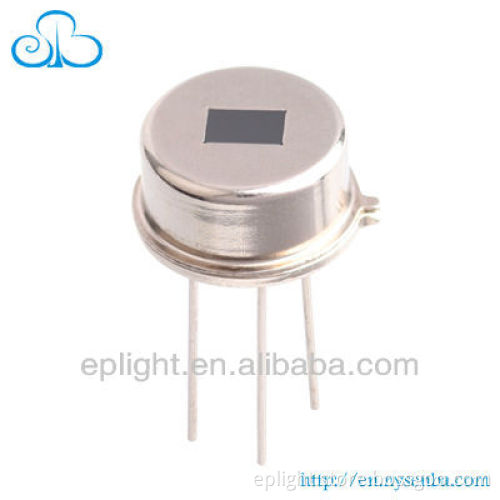

Product Image
Besides, we offer fresnel lens and IC which will use in the pir circuit. Good price!
1.high sensitivity
2.top pir factory in China
3.technical support
4.fast delivery,good price
Pir motion sensor D202X, perfect for toys and nights, other short distance detect system, customized for your projects, energy-saving Typical Applications 1.automatic control for lighting,, sensor switch, LED bulb, LED tube 2.security system, ir camera, alarm etc., 3.intellectualized toys applications, 4.any item need to detect human Technical Data for infrared sensor D202X
Recommended Model | D202X |
Encapsulation Type | TO-5 |
IR Receiving Electrode | 2×1mm, 2elements |
Window Size | 2×3mm |
Spectral Response | 5-14µm |
Transmittance | ≥75% |
Output Signal[Vp-p] | ≥3300mV |
Sensitivity | ≥3100V/W |
Detectivity (D*) | 1.4 ×108 cmHz1/2/W |
Noise[Vp-p] | <70mV |
Output Balance | <10% |
Offset Voltage | 0.3-1.2V |
Supply Voltage | 3-15V |
Operating Temp | -30-70ºC |
Storage Temp | -40-80ºC |
Besides, we offer fresnel lens and IC which will use in the pir circuit. Good price!
