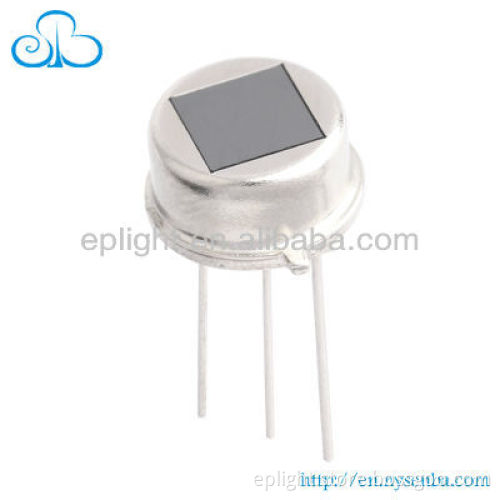

wide detect angle PIR sensor D205B, human detect sensor

Specifications motion semsor for human

1.180 degree

2.high sensitivity

3.top manufacturer in China,good price

4.technical support

 best price as the leading manufacturer in China, strong R&D support   Item No.: D205B       Quad sensing elements are applied to suppress the interference resulting from circumstance temperature variation, to raise signal output and to be sensitive in all directions.   This type senor has the technical merits of both single and dual type. As a result, the operating stability of the sensor is greatly improved.   Typical  Applications   1.automatic light switch control, 2.security systems, ir camera
3.burglar alarms, 4.led bulb, led tube, street lgihts, sensor switch , 5.intellectualized toys, etc., 6.especially in the field of ceiling mount applications.   Data sheet for PIR D205B

Recommended Model	D205B big window
Encapsulation Type	TO-5
IR Receiving Electrode	0.7×2.4mm, 4elements
Window Size	4.9×4.9mm
Spectral Response	5-14µm
Transmittance	≥75%
Output Signal[Vp-p]	≥5000mV
Sensitivity	≥4300V/W
Detectivity (D*)	1.6 ×108 cmHz1/2/W
Noise[Vp-p]	<70mV
Output Balance	<10%
Offset Voltage	0.3-1.2V
Supply Voltage	3-15V
Operating Temp	-30-70ºC
Storage Temp	-40-80ºC

          We are the top manufacturer of pir sensor in China, ranks No.3 in the world market. Direct supply, best price!
