Dual Elements Big Window Passive PIR Sensor D204B

Specifications passive pir sensor

1.Strong R&D with super quality

2.good control cost with best price

3.rapid shipping

4.long distance

Dual Elements Big Window Passive PIR Sensor D204B   Model:D204B   passive pir sensor Theory:   The pyroelectric infrared sensor detects infrared radiation on the basis of the characteristics that the polarization of pyroelectric material changes with temperature.   Quick Details

Place of Origin: Guangdong China(Mainland)	Brand Name:Senba	Model Number: D204B
Usage: PIR sensor	Theory: Inductance Sensor	Output: pir sensor
Detection Distance: 5m( 12 adjustable)	Time Delay:: 3Sec.~3Min. (adjustable)	Ambient Light:: <3Lux~daylight

   Attractive pir sensor model that can replace Nichera  with good price!       PASSIVE PIR Sesnor Appliication: Sensor light light switch control intellectualized toy, etc security systems, burglar alarms, IA Intelligence Appliance, visitor acknowledgement   infrared Sensor Specification:

Recommended Model	D204B big window
Encapsulation Type	TO-5
IR Receiving Electrode	2*1mm, 2 elements
Window Size	5*3.8mm
Spectral Response	5—14µm
Transmittance	≥75%
Output Signal[Vp-p]	≥3500mV
Sensitivity	≥3300V/W
Detectivity (D*)	1.4 ×108 cmHz1/2/W
Noise[Vp-p]	<70mV
Output Balance	<10%
Offset Voltage	0.3~1.2V
Supply Voltage	3—15V
Operating Temp	-30—70ºC
Storage Temp	-40—80ºC

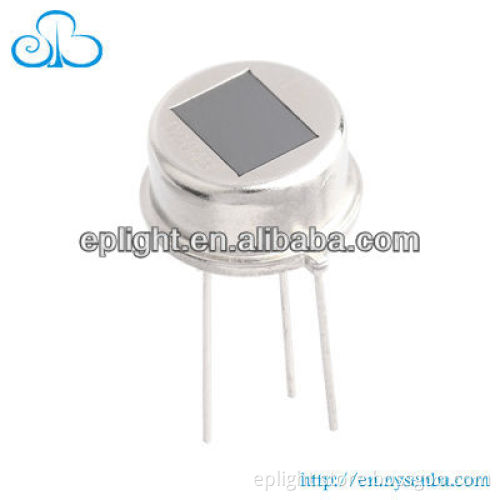

  passive pir sensor related photoes:    1. good quality passive pir sensor :          2.passive pir sensor factory photoes:          :
