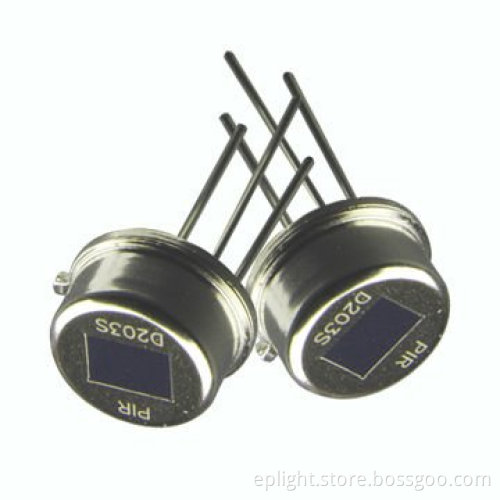

dual elemenets D203s Infrared motion sensor
- Delivery Time:
- 1 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Guangdong, China (Mainland) |
|---|
Product Description
Product Description
Specifications Motion Sensor
1.5-7 detected distance
2.delay time can be adusted
3.widely used for Sensor swich,light
4.Factory directly
D203S Infrared Motion Sensor Theory: The pyroelectric infrared sensor detects infrared radiation on the basis of the characteristics that the polarization of pyroelectric material changes with temperature. Dual compensated sensing elements Appliication: Sensor light light switch control intellectualized toy, etc security systems, burglar alarms, IA Intelligence Appliance, visitor acknowledgement Special Selling Point: 1.10 years factory experience 2.High sensitivity 3.Wide sensitive angel 4.2 year warranty 5. detect the infrared rays released by human body Specification:
Photoes
1.5-7 detected distance
2.delay time can be adusted
3.widely used for Sensor swich,light
4.Factory directly
D203S Infrared Motion Sensor Theory: The pyroelectric infrared sensor detects infrared radiation on the basis of the characteristics that the polarization of pyroelectric material changes with temperature. Dual compensated sensing elements Appliication: Sensor light light switch control intellectualized toy, etc security systems, burglar alarms, IA Intelligence Appliance, visitor acknowledgement Special Selling Point: 1.10 years factory experience 2.High sensitivity 3.Wide sensitive angel 4.2 year warranty 5. detect the infrared rays released by human body Specification:
Recommended Model | D203S small window |
Encapsulation Type | TO-5 |
IR Receiving Electrode | 2×1mm, 2 elements |
Window Size | 4×3mm |
Spectral Response | 5—14µm |
Transmittance | ≥75% |
Output Signal[Vp-p] | ≥3500mV |
Sensitivity | ≥3300V/W |
Detectivity (D*) | 1.4 ×108 cmHz1/2/W |
Noise[Vp-p] | <70mV |
Output Balance | <10% |
Offset Voltage | 0.3~1.2V |
Supply Voltage | 3—15V |
Operating Temp | -30—70ºC |
Storage Temp | -40—80ºC |
