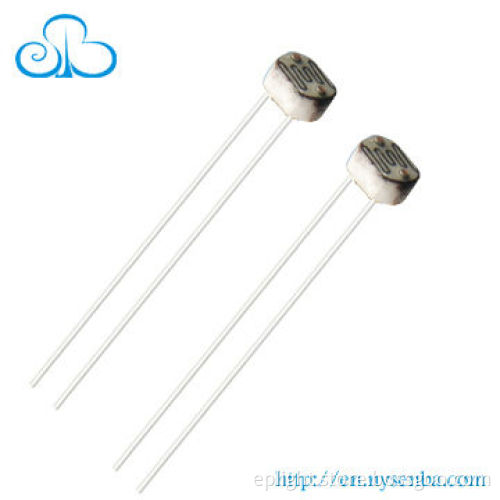

GL45 series Fast Response Dia. 4mm photo cell (CDS)

Specifications 1.Good reliability

2.Small volume

3.High sensitivity

4.Fast response

5.Good spectrum characteristic

GL45 series Fast Response Dia. 4mm photo cell (CDS)   Photoresistor is a resistor which made of semi-conductor material,and the conductance changes
with luminance variation .The photoresistor can be manufactured with different figures and illuminated
area based on this characteristic.Photoresistor is widely used in many industries, such as
toys,lamps,camera,etc.   Performances and Features Coated with epoxy Good reliability Small volume High sensitivity Fast response Good spectrum   Typical Applications Camera automatic photometry Photoelectric control Indoor ray control Annunciator Industrial control Light control switch Light control lamp Electronic toy   Specifications

Specification	Type	Max. Voltage (VDC)	Max.  power (mw)	Environmental  temp.	Spectrum  peak value (nm)
φ4 series	GL4516	150	50	-30~+70°C	540
	GL4526	150	50	-30~+70°C	540
	GL4537-1	150	50	-30~+70°C	540
	GL4537-2	150	50	-30~+70°C	540
	GL4548-1	150	50	-30~+70°C	540



Specification	Light  resistance  (10Lux)           (KΩ)	Dark  resistance  (MΩ)	r100/10	Response time  (ms)		Illuminance  resistance  Fig. No.
				Increase	Decrease
φ4 series	5-10	0.6	0.5	30	30	3
	10-20	1	0.6	30	30	3
	20-30	2	0.6	20	30	4
	30-50	3	0.7	20	30	4
	50-100	5	0.8	20	30	6
