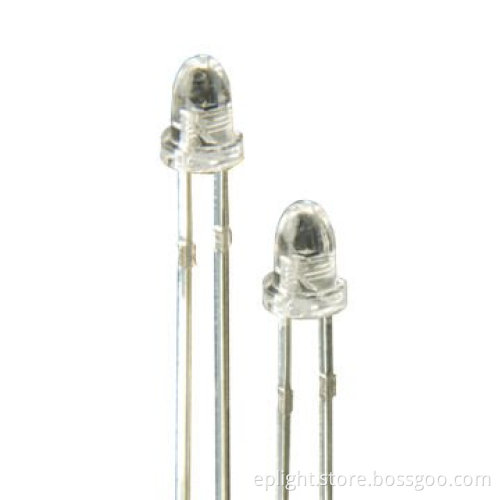

Light sensor switch

Specifications Linear light sensor

Type: LSO7-A

Replacement of Cds

Rohs Compliang/Pb-free/Cd-free

Linear output illuminance

 LS07-A  3mm   Production Specification 1..Replacement of Cds 2. RoHS Compliant / Pb-free / Cd-free Production Specification  3.Linear Output Type Light Sensor   TYPICAL APPLICATIONS 1.Replacement of Photoresistor (CdS). 2.Control of backlight brightness for LCD Monitors,TV sets, PDA ,Cameras and Mobile Phones. 3.switch for lighting equipments and Toys. 4.Testing for daylight.     FEATURES 1.Linear output conforming to illuminance. 2.Built-in optical filter for spectral response similar to that of the human eye. 3.High Gain Photocurrent Amplifiers IC 4.Temperature Stable. 5.Low dark current and Low working Lux.     CHARACTERISTICS

Characteristics	Symbol	Max	Unit
Power Dissipation	PD	10	Mw
Collector-emitter Breakdown Voltage	V(BR)CEO	30	V
Operating temperature range	Temp	-35 to 85	°C
Storage temperature range	Temp	-35 to 85	°C

   Electrical and Optical Characteristics (Ta= 25°C)

Parameter	Symbol	Test Conditions	Min	Type	Max	Unit
Collector-emitter Breakdown Voltage	BVCEO	IC=100μA ,IB=0	30		100	V
Emitter-collector Breakdown Voltage	BVECO	IE=100μA ,IB=0	5			V
Collector dark current	ICEO	VCE=20V ,H=0mw/cm2			100	n A
Collector-emitter Saturation Voltage	VCE(S)	IC=2mA ,IB=100μA			0.4	V
Rise/fall time	TR/TF	VCE=5V IC=1Ma RL=1000Ω		15/15		μS
Current gain	hFE	VCE=5V ,IC=2Ma	500
Collector-base Capacitance	CCB	F=1MHZ ,VCB=3V	5.4	6.4	7.4	PF
Photo Current	HL	VDD=5V,EV=10LUX	80		130	μA
