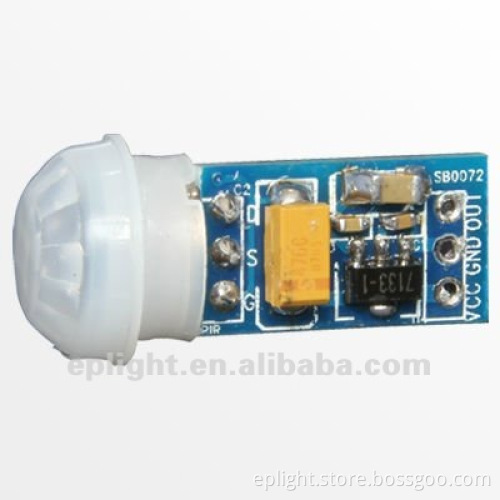

Mini Size 10mm by 18 mm pir module (SB 0072 )
- Delivery Time:
- 3 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Guangdong, China (Mainland) |
|---|
Product Description
Product Description
Specifications pir motion sensor module
1.small pcb,easy integrated
2.high sensitivity
3.largest pir manufacturer in China
4.good price
Mini Size 10mm by 18 mm pir module (SB 0072 ) Item No.: SB0072 Features and Electrical Data Compact size: 10x 18 mm Supply current: DC5V-20V(can design DC3V-24V) Current drain :< 50uA Voltage Output: High/Low level signal, 3.3V TTL output Delay time: 5s-18 minute(as customer requirement) Operation Temperature: -20°C-+60°C Infrared sensor: dual element, low noise, high sensitivity Typical Applications 1. led bulb, led tube lamp, lighting 2. motion sensor switch 3. alarm system 4. ir camera 5.human detect toys 6. solar panel 7, household items like air conditioner 8.other products that need to detect human automatically, save more power Pictures for Infrared sensor module 1.motion sensor module for lighting system
2.infrared sensor module for human presence detect system
other pir modules available SB0061
SB0071
SB0081, TTL / open-collector output available
We are the largest pir sensor manufacturer in China with 14 years, No.3 for the sale in the world market. Senba PIR and LDR sensor industrial park
Senba professional staff
Contact me with your requirements for application, detecting distance, angle, etc.
1.small pcb,easy integrated
2.high sensitivity
3.largest pir manufacturer in China
4.good price
Mini Size 10mm by 18 mm pir module (SB 0072 ) Item No.: SB0072 Features and Electrical Data Compact size: 10x 18 mm Supply current: DC5V-20V(can design DC3V-24V) Current drain :< 50uA Voltage Output: High/Low level signal, 3.3V TTL output Delay time: 5s-18 minute(as customer requirement) Operation Temperature: -20°C-+60°C Infrared sensor: dual element, low noise, high sensitivity Typical Applications 1. led bulb, led tube lamp, lighting 2. motion sensor switch 3. alarm system 4. ir camera 5.human detect toys 6. solar panel 7, household items like air conditioner 8.other products that need to detect human automatically, save more power Pictures for Infrared sensor module 1.motion sensor module for lighting system
2.infrared sensor module for human presence detect system other pir modules available SB0061 SB0071 SB0081, TTL / open-collector output available We are the largest pir sensor manufacturer in China with 14 years, No.3 for the sale in the world market. Senba PIR and LDR sensor industrial park Senba professional staff Contact me with your requirements for application, detecting distance, angle, etc.
