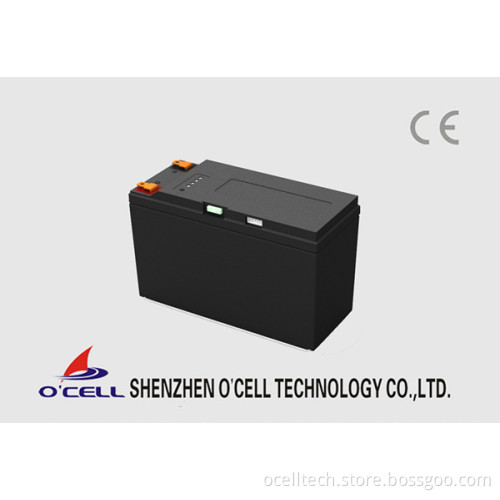

Lithium 12V 9Ah LiFePO4 battery pack with SMBus communication and LED Indicator

1. Specification:

Item	IFM12-90E3
Nominal Capacity	9Ah
Nominal Voltage	12.8V
Charge Voltage	14.6V
Discharge Cut-off Voltage	9.6V
Standard Charge Current	0.2C5constant current (CC) charge to 14.6V,then constant voltage (CC)14.6V charge till charge current decline to ≤0.05 C5
Standard Discharge	Constant current 0.2 C5
Maximum Charge Current	9A
Continuous Discharge Current	18A
Battery Structure	Cell: IFR18650EC-1.5Ah    4S6P
Weight	1.25kg
Dimension	151*65*97mm
Expect Cycle Life	>1,500 cycles
Working Temperature	-20℃~60℃
Fuel Gauge	Led  Light   Smbus  communication port

  2. Certifications:   UL1642, UL2054, UN   3. Advantages of LiFePO4 Battery:   Intrinsic Safety from LiFePO4 Material.
Better Shelf Life.
Good Rate Performance.
Wider Operation Temperature.
Excellent Cycle Life.   4. Contact Us: Mr. Fred Yang   Address: 3/F, Building B, Donghao Industrial Park, Sili Road, Guanlan Town, Bao'an District, Shenzhen, Guangdong, China TEL: +86-755-81781377 FAX: +86-755-81781420 Mobile: +86-158-89298390 Website: www.ocelltech.com
