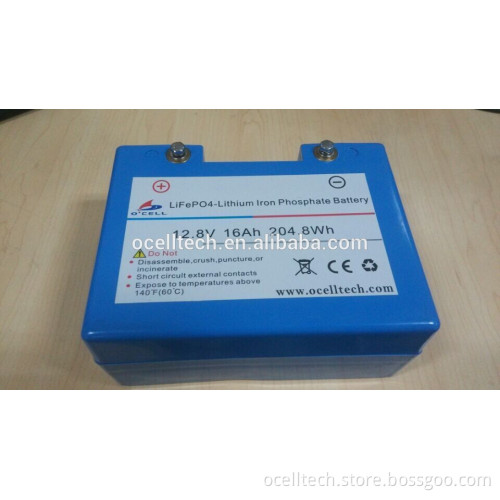

12.8V16Ah LiFePO4 Battery for Golf Trolley / IFM12-160E2

No.

Item

General Parameter

Remark

1

Rated Capacity

16.0Ah

Standard discharge(0.2 C5)after standard charge(0.2 C5)

2

Minimal Rated

Capacity

16.0Ah

3

Nominal Voltage

12.8V

4

Cycle Life

Higher than 60% of the Initial Capacity of the Cells

Charge: CC @0.2C to 14.6V, then CV till current to 0.05C

Rest: 30min.

Discharge: 0.2C to 10.0V

Temperature:20±5°C

Carry out 2000cycles

5

Discharge cut-off voltage

9.2V

10.0V( recommended)

10.0V

6

Charging cut-off voltage

14.8V

14.6V (recommended)

7

Cell and assembly method

IFR26650EC-3.3AH

4S5P

8

Housing material

ABS+PC
