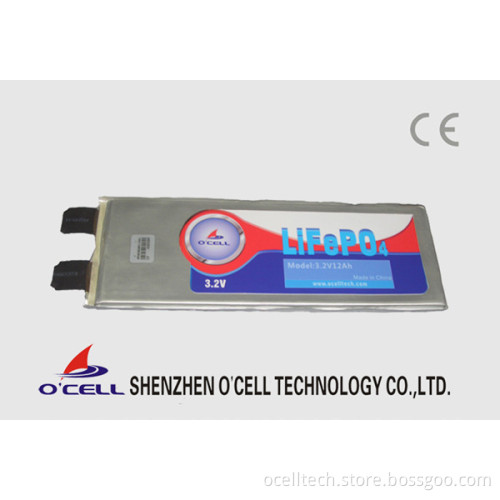

li ion LiFePO4 3.2v 10ah pouch prismatic cell

1. Specification:

No.	Items	Specifications
1	Nominal voltage	3.2V
2	Nominal capacity	1000mAh @ 0.2C discharge
3	Minimal capacity	950mAh @ 0.2C discharge
4	Charge cut-off voltage	3.65V
5	Charge current	0.2C
6	Standard charging method	0.2C CC (constant current) charge to 3.65V, then CV (constant voltage 3.65V) charge till charge current decline to ≤0.05C
7	Charging time	Standard charge: 7.0 hours
8	Max. charge current	1C
9	Max. continuous discharge current	2C (cell skin temperature cannot exceed 55°C)
10	Discharge cut-off voltage	2.5V
11	Operating temperature	Charging:0°C ~ 45°C Discharging:-10°C ~ 55°C (cell skin temperature cannot exceed 55°C)
12	Storage temperature / humidity	Temperature -10°C ~ +35°C Humidity 65%±20%RH (Recommended to store 23 ± 5°C for long term storage)
13	Cell weight	28g±2g
14	Cell dimension	Length: 67.5mm max. Width: 40.5mm max. Thickness: 6.2mm max.

  2. Other Models:

Model	Nominal Voltage (V)	Nominal Capacity		Dimension (mm)	Approx. Weight (g)
		Typical	Minimum	(TxWxL)
IFP604070EC	3.2	1050	1000	6.0x40.5x70.5	31
IPF604067EC	3.2	1000	950	6.0x40.5x67.5	30
IFP6558150EC	3.2	4000	3900	6.7x58.5x159.0	102
IFP50125210EC	3.2	9000	8500	5.0x125.0x210.0	230
IFP8080225EC	3.2	10500	10000	10.2x81.0x227.0	260
IFP9078230EC	3.2	12500	12000	9.2x79.0x232.0	295
IFP55180210EC	3.2	15500	15000	5.8x180.5x210.5	395
IFP80150225EC	3.2	20500	20000	10.2x152.0x227.0	560
IFP95220160EC	3.2	20500	20000	10.0x225.0x165.0	560

  3. Warranty: 18 years.    4. Certifications: UL2054, UL1046, CB, RoHS, UN38.3&MSDS   5. Contact Us:    Sales Representative: Fred Yang    Tel: +86-755-81781377    Fax: +86-755-81781420    Mobile: +86-158-89298390    Website: www.ocelltech.com
