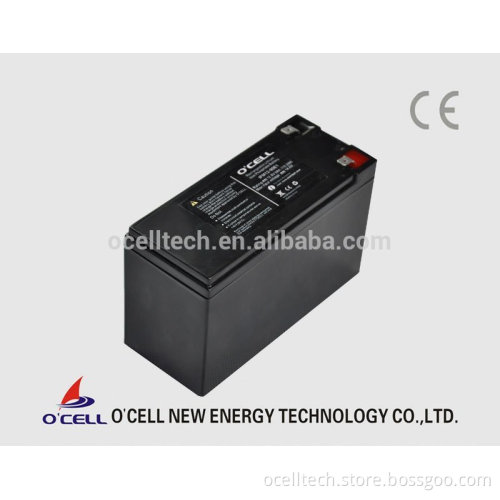

12V LiFePO4 Battery Pack 9Ah battery for Golf trolley

12V LiFePO4 Battery Pack 9Ah battery for Golf trolley

Item	Unit	Specifications
Nominal Capacity	Ah	9.0
Nominal Voltage	Voltage	12.8
Dimension	mm	110×90×70mm
Weight	kg	1.1
Cut-Off Charge Voltage	Voltage	14.6
Cut-Off Discharge Voltage	Voltage	10.0
Standard Discharge Amperage	Amps	9.0
Rated Discharge Amperage	Amps	27.0
Standard Charge Current	Amps	4.5
Rated Charge Current	Amps	9.0
Storage Temperature Range	oC	-20oC-60oC
Working Temperature (Charging)	oC	0oC--45oC
Working Temperature (Discharging)	oC	-20oC--60oC
Relative Humidity	N/A	45%--75%RH

  Usage Notes: OCELL12V9Ah module, with nominal voltage of 12.8V and capacity of 9Ah is assembled with high energy LiFePo4 cells.It can be used individually and can be connected in serial or parallel to achieve given voltage and capacity.   Features: a. Extremely safe and stable chemistry: PCB and/or BMS built inside to protect the battery. b. Long life-cycle: Best can up to 2000 times recycles, 8 times of Lead acid battery. c. Lighter weight, with the best power-to-weight ratio: 1/3 of Lead acid battery weight. d. Good performance at high temperature. e. Low self-discharge rate, less than 3% monthly. f.  No memory effects. g. Environment friendly: Non-toxic, non-contaminating and no rare metal.   CONTACT: sales11 AT ocelltech.com
