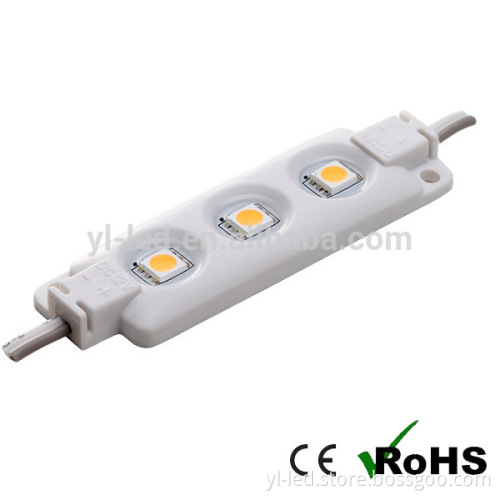

wholesale waterproof DC12V injection 3 chip 5050 SMD LED module, white smd led module for signage

  wholesale waterproof DC12V injection 3 chip 5050 SMD LED module,  white smd led module for signage  /  -- YL6820ZF-3W5050    Product Description                                                                                              1. Product photo     Adopting high brightness sorted SMD 5050, The brightness of each LED is up to 22-24LM.  low light failing, no shadow.
   15 years experiences make sure the good color consistency between different batches, and reduce the storage cost.   PVC injection housing and surface glue producing process creat IP65 waterproof level, The LED Modules can operate normally in cloudy, rainy, desert, and snowy weather conditions.   Adopting good solder paste, The modules are Pb free. With CE/RoHS/SGS certificates.  LED Modules have a long life time of more than 50,000 hours. Waterproof LED Modules are up to 60% more energy efficient than neon.   Low voltage DC12V, safety and stable. Free maintenance.     LED Modules can be easily installed with double-stick 3M tape. DIfferent optioins are available.     Similar products-  YL6820ZF-3W5630, YL6820ZF-3X2835, YL6820ZF-3X3528 are also available.    2. Product chart      3.Technical data

Item No.	YL6820ZF-3W5050
PCB Size	68*20MM
LED Quantity	3pcs SMD 5050
Input Voltage	DC Input 12V
View Angle	120  Deg.
Current	60 mA
Power	0.72W / module
Luminance	60-65LM
Color	R,Y,B,G,White 3000-15000K
Connector	UL 1007 18# Gray White Wire   Length  100mm Gray Anode White Cathode
Group	20PCS
Max. Group	≤20PCS
Base	PVC, little yellowish
Life	50 000 Hours
Ambient Temperature	-40°C- 60°C (-40°F~140°F)
Warranty	24Months
IP Grade	IP65

  4. Product Application   Medium to large channel letter, vacuum- thermoform letter, light box, 3D letters &shapes – illuminating returns, face or halo effect on background                Company Information       Certifications CE, RoHS         Packaging & Shipping  Packaging                Shipping Method           1) By Express          DHL, UPS, TNT, Fedex               EMS                Faster, suit for small or urgent orders.            2) By air,  By sea, By Road                    Freight saving,  suit for big orders.   Our Services 1) Inquiry replied within 12 working hours    2) Customized design available; OEM&ODM welcomed    3) Exclusive and unique solution can be provided   4) Special discount and protection of sales area provided to our distributor.          FAQ 1) MOQ :   MOQ 1000PCS,QTY<1000PCS handle as sample order.   2) Payment :  TT, Westerunion, Paypal, L/C    3) Delivery time: 3-15 working days according to Qty.    4) Others : customer-made lighting colors, customer designs are available. Other questions, Please send email to us or call +86 - 0755- 2704 5110 - 808.
