China waterproof best Color consistency low light fades 3 chips 5050 injection SMD LED module

China waterproof best Color consistency low light fades 3 chips 5050 injection SMD LED module

Get Latest Price

Delivery Time:: 3 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Specifications The best Color consistency in LED light industry

High brightness

Easy Installation

Totally waterproof

Friendly environment

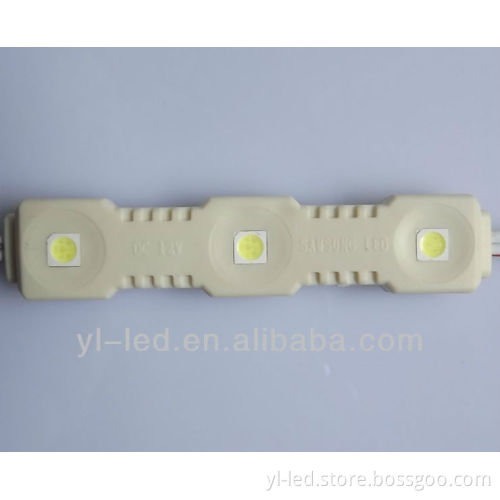

Specifications 1. SMD 5050 injection LED sign module
2. DC12V, 60mA, 0.72W
3. Size:L76mm*W15mm*H6 mm
4. With CE,RoHS
5. Warranty: 2 years 3 chips SMD 5050 injection LED sign module Applications: 1. Channel letter backlighting 2. Advertisement sign backlighting, backlight or edge lighting for sign 3. Advertisement light box and billboard backlighting 4. Architectural lighting for window ,archway ,canopy and corridor

Aging test: Detailed description:

Item No.	YL7615ZF-3CW5050	YL7615ZF-3B5050	YL761ZF-3G5050	YL7615ZF-3R5050	YL7615ZF-3RGB5050
Size	L76mmW15mmH6mm
LED Quantity	3pcs LED 5050
Input Voltage	DC Input 12V
View Angle	120 Deg.
Current	60mA
Power	0.72W
Luminance	57LM	10.5LM	36LM	21LM	50LM
Color	White 3000K-100000K	Blue	Green	Red	RGB
Connector	UL 1007 18# Red White Wire Length 100mm Red Anode White Cathode
Group	20PCS
Max. Group	≤20PCS
Base	PVC anti-fire material, Beige, complete Injection
Life	50 000 Hours
Ambient Temperature	-40°C- 60°C (-40°F~140°F)
Warranty	2 years
Weight	13g/PC
IP Grade	IP65
