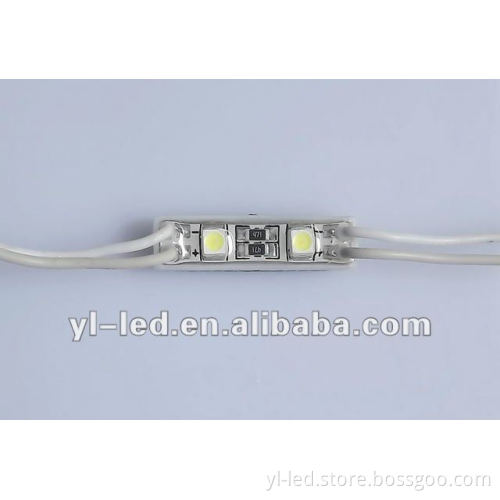

Small size high brightness 2pcs SMD 3528 led module

Specifications 1.small size module: L26mm*W7mm*H4mm

2. Mini 2SMD 3528 module

3.Totally waterproof: IP67

4.High brightness:12.4LM

5.CE&ROHS

Small size high brightness 2pcs SMD 3528 led module     Product Applications
 3528 SMD LED Modules with big light angle,no shadow,low light falling,easy to install and free maintainess;widely used in three-dimensional light words,restaurant, hospital, grocery and casino.
  Features:
·Highest Brightness With famous chip,high brightness,low light failing,no shadow.
·Easy Installation
LED Modules can be easily installed with double-stick tape .  ·Life span
LED Modules have a life time of more than 50,000 hours.
·Totally waterproof
With IP67 protection degree, LED Modules can operate normally in cloudy, rainy, desert, and snowy weather conditions and pool. The LEDs are totally covered by resin.
·Friendly environment
Pb free. With CE/RoHS/SGS certificate, Waterproof LED Modules are up to 60% more energy efficient than neon.
·Safe Application
Low voltage DC12V, safety and stable. Free maintenance   Specifications:

Item No.	YL2405F-2W3528	YL2405F-2B3528	YL2405F-2G3528	YL2405F-2Y3528	YL2405F-2R3528
Size	L26mm*W7mm*H4mm
LED QTY.	2pcs LED 3528
Input  Voltage	DC Input 12V
View Angle	120 Deg.
Current	25mA	25mA	25mA	30-35mA	30-35mA
Power	0.3W	0.3W	0.3W	0.36-0.42W	0.36-0.42W
Luminance	12.4LM	2.3LM	9.9LM	4.0-4.5LM	4.5-5LM
Color	White 3000-100000K	Blue	Green	Yellow	Red
Connector	UL 1007 26# Gray white wire  Length 50mm Gray Anode White Cathode
Group	20PCS
Max. Group	≤20PCS
Base	Milk White  PS
Life span	50 000 Hours
Ambient Temperature	-40°C- 60°C (-40°F~140°F)
Warranty	24 Months
Weight	2.4g
IP Grade	IP67

   Application pictures:             Installation drawing:
