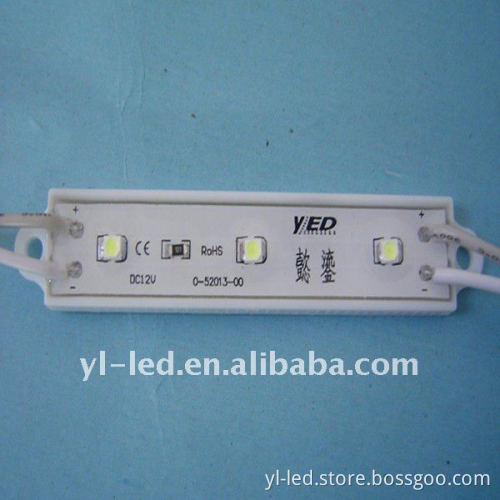

HOT SALES ! 18.5 lm ,0.3W 3528 smd led modules
  • HOT SALES ! 18.5 lm ,0.3W 3528 smd led modules
HOT SALES ! 18.5 lm ,0.3W 3528 smd led modules

HOT SALES ! 18.5 lm ,0.3W 3528 smd led modules

Delivery Time:
3 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Guangdong, China (Mainland)
Product Description
Product Description
    HOT SALES ! 18.5 lm ,0.3W 3528 smd led modules     3528 SMD LED Modules with big light angle,no shadow,low light falling,easy to install and free maintainess;widely used in three-dimensional light words,restaurant, hospital, grocery and casino.   Features:
·Highest Brightness With famous chip,high brightness,low light failing,no shadow.
·Easy Installation
LED Modules can be easily installed with double-stick tape .  ·Life span
LED Modules have a life time of more than 50,000 hours.
·Totally waterproof
With IP65 protection degree, LED Modules can operate normally in cloudy, rainy, desert, and snowy weather conditions and pool. The LEDs are totally covered by resin.
·Friendly environment
Pb free. With CE/RoHS/SGS certificate, Waterproof LED Modules are up to 60% more energy efficient than neon.
·Safe Application
Low voltage DC12V, safety and stable. Free maintenance

Item No.

YL7512F-3W3528

YL7512F-3B3528

YL7512F-3G3528

YL7512F-3Y3528

YL7512F-3R3528

Size

L92mm*W14mm*H4.8mm

LED Quantity

3Pcs LED 3528

Input Voltage

DC Input 12V

View Angle

120  Deg.

Current

25mA

25mA

25mA

35mA

35mA

Power

0.3W

0.3W

0.3W

0.42W

0.42W

Luminance

18.5LM

3.6LM

15LM

6.1LM

7.6LM

Color

White

3000-100000K

Blue

Green

Yellow

Red

Connector

UL 1007 20# Gray White Wire   Length  100mm Gray Anode White Cathode

Group

20PCS

Max. Group

≤20PCS

Base

Milk White PS

Life

50 000 Hours

Ambient Temperature

-40°C- 60°C (-40°F~140°F)

Warranty

24Months

Weight

7.75g/PCS

IP Grade

IP65

  Product:     Product applications:   Injection LED modules China with big light angle, no shadow, low light fades, easy to install and free maintenance; widely used in three-dimensional light words, house,office, advertisement restaurant, hospital, grocery or casino.           Similar products:   Production fix:             Production workshop :               Packaging:                 Company lighting fair:             Activities :                     Certificates:              Company:                       Brief about us: Shen zhen Yi Liu Electronics Co., Ltd. is a specialized manufacturer and supplier of LED advertisement & signage light sourcing products. We provide fast delivery, competitive pricing, customized solutions, and technical supports. Our factory operate strictly according to ISO9001 2008 system. Our products are CE approved and RoHS compliant. We have strong R & D team working closely with customers to provide best cost efficient solutions for every application. Our automated manufacturing facilities are equipped with advanced test and inspection systems. Our products are exported to many countries and areas including North & South America, Europe, South-east Asia etc.
