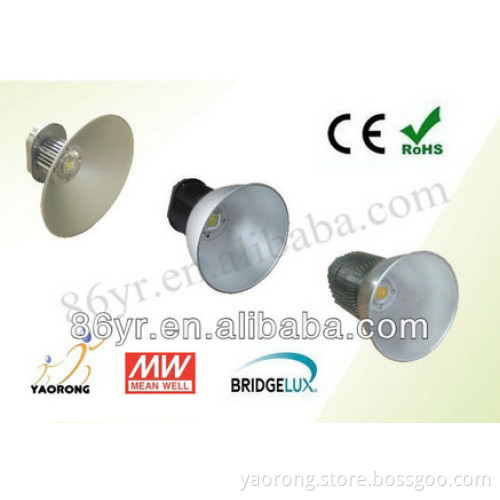

30W bridgelux&meanwell high bay led 3 years warranty LED industrial light with ies.file approval

Specifications 30W bridgelux&meanwell high bay led 3 years warranty LED industrial light with ies.file approval

Specifications   led high bay
1)CE&ROHS
2)30W to 400W;
3)3 years guarantee
4)ISO 9001:2008&ISO14001:2004

   led industrial light
1)CE&ROHS
2)Epistar/Bridgelux 45mil
3)3 years guarantee
4)ISO 9001:2008&ISO14001:2004 5)Manwell driver   YR-IS500-W30   30W   Tech Parameter:

Model number	YR-IS500-W30   30W
LED consumptions	30 W
System Consumption	36 W
LED initial flux	WW	PW	CW
	2460 Lm	2550 Lm	2490 Lm
Power factor	More than 0.98
Total hamornical distortion	≤9%
Power efficiency	More than 82%
Power efficiency	More than 91%
installation height	6M	8M	10M
Average illuminance	≥20 lux	≥9.9 lux	≥6.3 lux
Illuminance Area	Diameter 10M	Diameter 16 M	Diameter 21 M
Illuminance  Uniformity	More than 0.4
Color Rendering Index	WW:Ra≥68;    PW/CW:Ra≥75
Beam angle	120
Working voltage	DC30-36V
Input voltage	AC85V-265V
frequency range	50Hz--60Hz
Junction Temperature	≤80°C
Working Temperature	“-40°C~+55°C”
IP Grade	IP65
LED Working life-span	More than 50000H
Certificate	CE,Rohs,
Packing dimension	26*26*25 cm
Net weight/gross weight	4.5  /  5 kg

    Material: High- purity aluminum reflector ,light housing and heat sink;High-power LED light source;High-efficiency LED driver.   Features: 1. Uses single powerful LED (30w) as the light source,using our proprietary LED encapsulation.   Utilizes the special design of multichip single module.Imported high brightness semiconductor chips.   2. Integrative design for heat sink and housing;The LED is closely connected to the surface.The heat from LED is removed through the heat dissipation wing and also by the air ventilatio.The design ensures a 50,000hours life-span for the LED .   3. Compared with traditional sodium lights,it can save electricity more than 70%.   4. No ill glare;no abrupt and frequent flashes.The design ensures that bad glare is eliminated,vision fatigue .   5. No delay start;no waiting .It can reach its normal light as soon as it is turned on.And avoid the long time start process of the traditional lights.   6. Environment friendly.Does not have lead,hydrargyrum,and any other contamination.No pollution to the air .                 Pictures show:   PRODUCT show :   COMPANY SHOW   Aging show of led high bay: dialux simulation show: TEST EQUIPMENT
