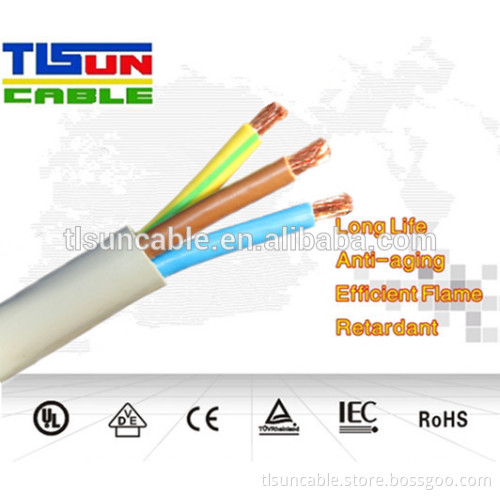

3*4mm PVC insulated electrical wire/cable

     3*4mm PVC insulated electrical wire/cable       Specification: RVV cable, Copper Conductor PVC insulated PVC Sheathed Round Cable

Standard: 227IEC, BS6500

Conductor: Copper Conductor

Rated Voltage: 300/300V, 300/500V

Color: Different Colors Available

Package: Coils, Plywood reel, drum    1. Used in exchange 300/500 V rated voltage electrical installations and below, apparattus and electronin equipment used lighting and electric supply lines, the line of control and signal transmission lines. 2. Applicable to the Security Monitoring Project, anti-theft alarm system,building systems and so on with speaking lines. 3. Model List: Rvv cable We have two cores, there cores, four cores, five cores, six cores, seven cores The sizes including:0.3mm2, 0.5mm2, 0.75mm2, 1mm2,1.5mm2, 2.5mm2, 4mm2, 6mm2 4.Long time working temperature:Not more than 70.
Application: General purpose indoor and outdoor, power cords for electrical tools and appliance.

	SPEC.	Normal area mm2	Conductor Structure mm	Min.insulation resistance at 700C Mohm.km	Thickness of insulation mm	Thickness of sheath mm	Approx. overall diameter mm
300/300V	227 IEC 52(RVV)	2x0.5	28x0.15	0.012	0.5	0.6	5.1
	227 IEC 52(RVV)	2x0.75	24x0.20	0.010	0.5	0.6	5.6
	227 IEC 52(RVV)	3x0.5	28x0.15	0.012	0.5	0.6	5.4
	227 IEC 52(RVV)	3x0.75	24x0.20	0.010	0.5	0.6	5.9
	227 IEC 53(RVV)	2x0.75	24x0.20	0.011	0.6	0.8	6.4
300/500V	227 IEC 53(RVV)	2x1.0	32x0.20	0.010	0.6	0.8	6.7
	227 IEC 53(RVV)	2x1.5	48x0.20	0.010	0.7	0.8	7.7
	227 IEC 53(RVV)	2x2.5	77x0.20	0.009	0.8	1.0	9.3
	227 IEC 53(RVV)	3x0.75	24x0.20	0.011	0.6	0.8	6.8
	227 IEC 53(RVV)	3x1.0	32x0.20	0.010	0.6	0.8	7.1
	227 IEC 53(RVV)	3x1.5	48x0.20	0.010	0.7	0.9	8.3
	227 IEC 53(RVV)	3x2.5	77x0.20	0.009	0.8	1.0	9.8
	RVV	3x4.0	56x0.30	0.007	0.8	1.1	10.9
	RVV	3x6.0	84x0.30	0.006	0.8	1.2	12.4
	227 IEC 53(RVV)	4x1.0	32x0.20	0.010	0.6	0.9	7.9
	227 IEC 53(RVV)	4x1.5	48x0.20	0.010	0.7	1.0	9.3
	227 IEC 53(RVV)	4x2.5	77x0.20	0.009	0.8	1.1	11.0
	RVV	4x4.0	56x0.30	0.007	0.8	1.2	12.2
	RVV	4x6.0	84x0.30	0.006	0.8	1.3	13.8
	RVV	4x10.0	84x0.40	0.0056	1.0	1.3	18.6
	RVV	4x16.0	126x0.40	0.0046	1.0	1.4	21.4
	227 IEC 53(RVV)	5x1.5	48x0.20	0.010	0.7	1.1	10.3
	227 IEC 53(RVV)	5x2.5	77x0.20	0.009	0.8	1.2	12.2
	RVV	5x4.0	56x0.30	0.007	0.8	1.2	13.4
	RVV	5x6.0	84x0.30	0.006	0.8	1.3	15.2
	RVV	5x10.0	84x0.40	0.0056	1.0	1.3	20.5
	RVV	5x16.0	126x0.40	0.0046	1.0	1.4	23.7

    Electrical wire instruction:     Technology standards 1). Rated voltage U0/U: 300/500V and 450/750V. 2). The longtime permissible temperature of cable: below 70°C.  3). Conductor maximum short circuit(not more than 5 seconds)temperature shall not be higher than 160°c. 4). The power cable is not limited by drop in level when being laid, and the ambient temperature shall not be lower than 0°c.   5). The bend radius: the external diameter of cable <25mm, and the bend radius is above 4 times of the external diameter of cable. And the other is above 6 times of the external diameter of cable.  6). Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame.   7). Light weight, perfect bending properties, installed and maintained easily and conveniently.  8). Insulation sheath material and color: PVC, PE, XLPE in red, black, blue, and any color as required.  9). Manufacturer Standard: GB/T 5023-2008, BS 6004, IEC 60227.          \
