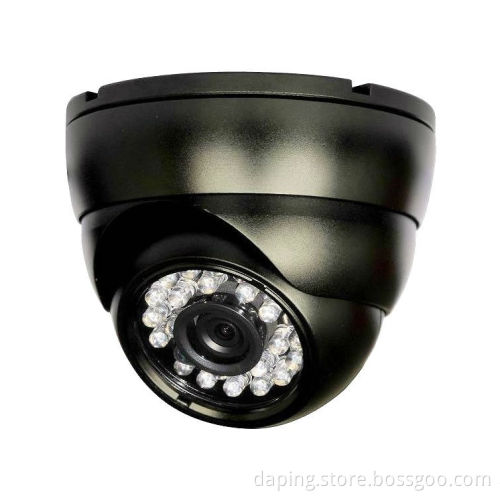

700tvl CMOS 30 leds indoor CCTV dome Camera Security camera

Get Latest Price

Delivery Time:: 3 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Specifications 1.High performanceSONY CCD

2.High resolution, image clarity

3.4mm/6mm/8mm lens

4.30pcs IR leds, 20m ir distance

700tvl CMOS 30 leds indoor CCTV dome Camera Security camera

Features: 1/3" SONY CCD High Resolution,Stable performance High Speed White Balance Electronic Focus High brightness infrared LED F5*30Pcs The infrared light could up to in the night Normal Sheet,Precision machining NTSC/PAL (Optional) Specification:

NO.	DP- 616S	DP- 616SL		DP- 616SLE
ITEM	NTSC/ PAL
IMAGE DEVICE	1/3" SONY SUPER HAD CCD SENSOR
HORIZONTAL RESOLUTION	420TVL	480TVL		600TVL
TYPE	3142+633	SONY632/633+Nextchip2030		SONY638/639+Nextchip2040
PIXELS H×V	NTSC:537H×505V	NTSC:537H×505V	NTSC:811H×508V	NTSC:811H×508V
	PAL:537H×597V	PAL:537H×597V	PAL:795H×596V	PAL:795H×596V
VERTICAL FREQUENCY	NTSC:60Hz / PAL:50Hz
SCANNING SYSTEM	2:1 INTERLANCE
SENSITIVITY	0Lux at F2.0 (IR ON)
S/N RATIO	≥50db
ELECTRONIC SHUTTER	NTSC:1/60~1/120,000sec / PAL:1/50~1/100,000sec
WHITE BALANCE	AUTO
BACK LIGHT COMPENSATION	AUTO
GAIN CONTROL	AUTO
IR LEDs	30pcs
GAMMA	0.45
VIDEO OUTPUT	1.0 Vp-p,75 Ohms Composite
POWER SUPPLY	DC 12V (±10%)
IR LED	F5*24Pcs
IR space	25M (IR ON)
LENS	6mm (OPTIONAL 3.6mm OR 8mm)
POWER CONSUMPTION	90mA (MAX 300mA)
FIXATION	3 Screws
STORAGE TEMPERATURE	-30°C ~ + 60 °C
OPERATION TEMPERATURE	-10°C ~ + 45 °C
CASINY DIMENSION	10010093mm
